Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

Product Code: 4670 6,000

$72.45$65.86 Ex. GST

Product Code: 4670 6,000 SKU 4670 6,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

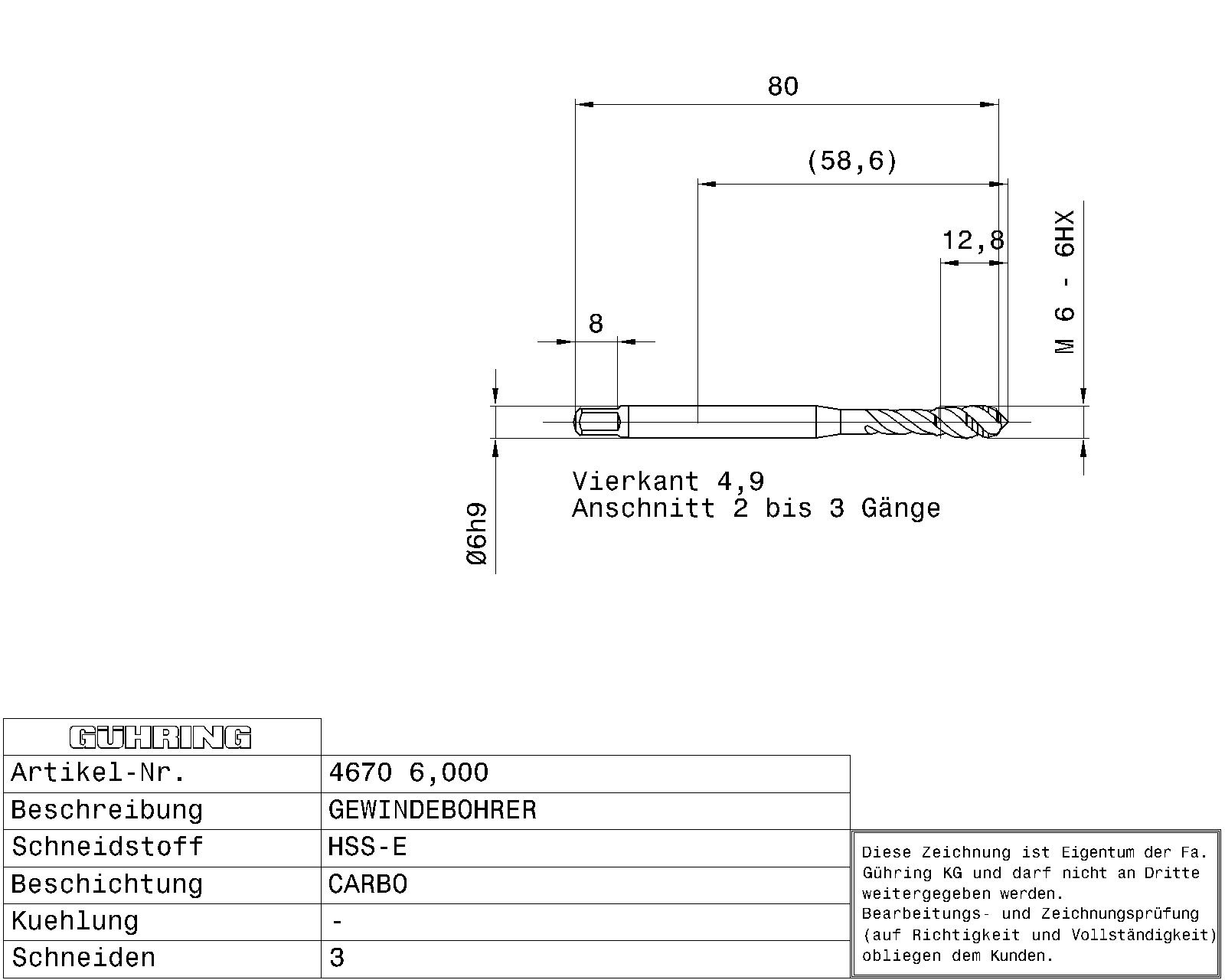

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M6 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / Carbo / Type: N R45 / Form: C / blind hole / Cutting direction: right-hand /
Application: N ≤ 7% Si

Additional information

Weight	0.017 kg
Dimensions
barcode	9046700060000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4670 Cutting direction: right-hand Type: N R45 Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 6.000 Weight: 0.017 No of cutting edges: 3 Total length: 80.000 Thread length: 11.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Core hole Ø: 5.00 Shank Ø: 6.000 Nominal dimension thread: M6 Pitch: 1.000 External Ø: 6.060 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
