Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

Product Code: 4670 10,000

$106.22$96.56 Ex. GST

Product Code: 4670 10,000 SKU 4670 10,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated

Guhring Metric Spiral Taps HSS-E Black band Carbo Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

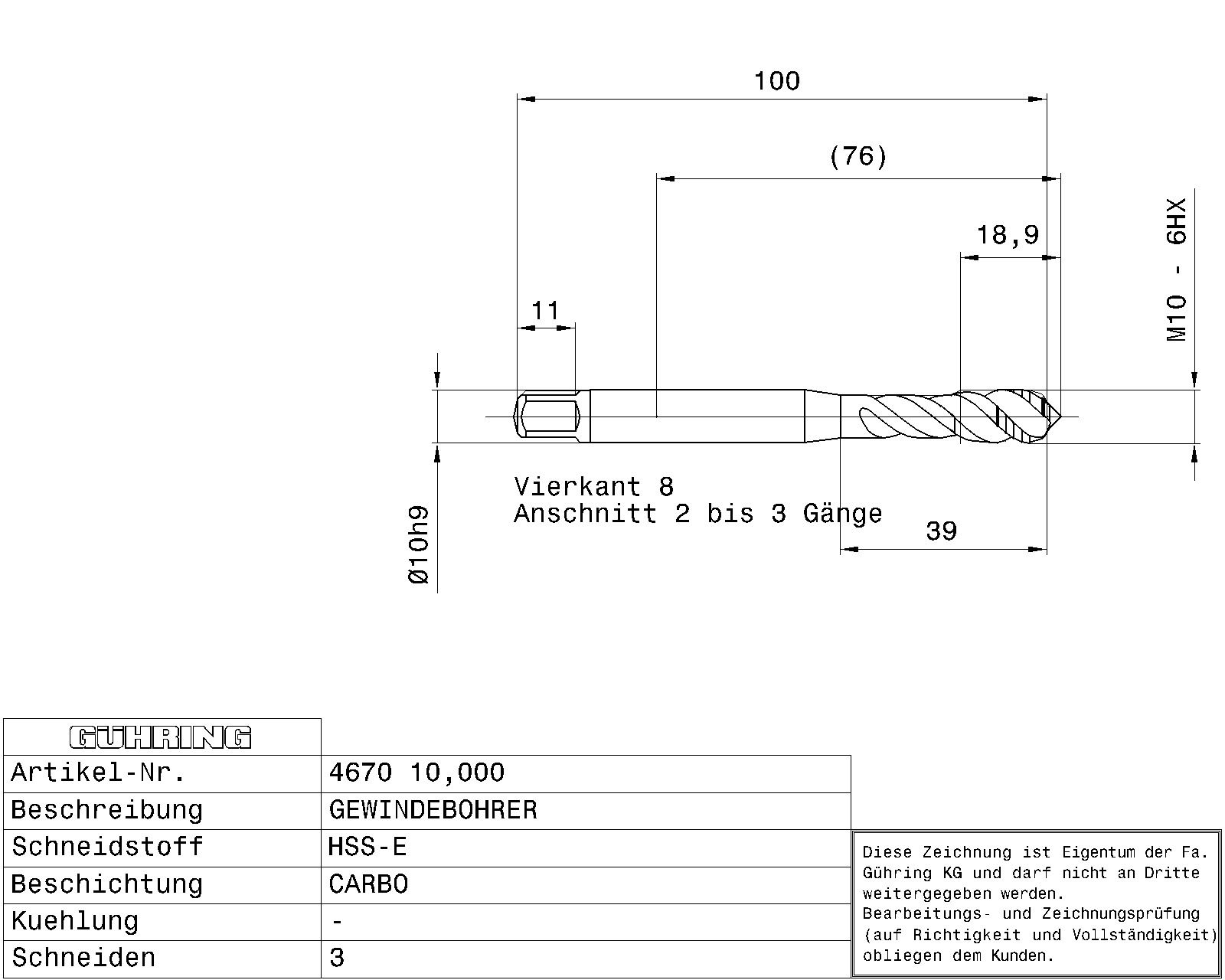

Machine taps for ISO metric threads M10 / 6HX / 3xD / DIN 371 / DIN 2184-1 / HSS-E / Carbo / Type: N R45 / Form: C / blind hole / Cutting direction: right-hand /
Application: N ≤ 7% Si

Additional information

Weight	0.053 kg
Dimensions
barcode	9046700100000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4670 Cutting direction: right-hand Type: N R45 Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 10.000 Weight: 0.053 No of cutting edges: 3 Total length: 100.000 Thread length: 16.000 Groove length: 35.000 Usable length: 39.000 Norm 2: DIN 2184-1 Wrench opening 1: 8.000 Core hole Ø: 8.50 Shank Ø: 10.000 Nominal dimension thread: M10 Pitch: 1.500 External Ø: 10.070 Reach length: 77.000 Statistical goods number: 82074010

Brand

Guhring
