Guhring Metric Spiral Taps HSS-E Red Band

Product Code: 823 16,000

$178.97$162.70 Ex. GST

Product Code: 823 16,000 SKU 823 16,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Metric Spiral Taps HSS-E Red Band

Guhring Metric Spiral Taps HSS-E Red Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

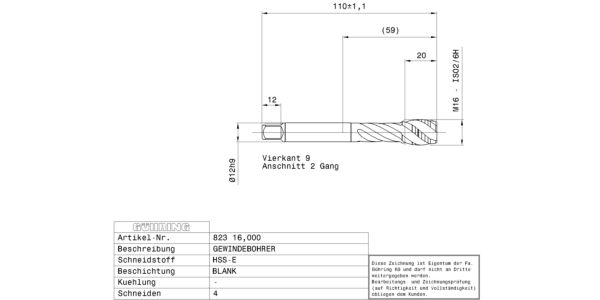

Machine taps for ISO metric threads M16 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E / bright / Type: H R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0860 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: bright Discount group: 103 Type: 823 Cutting direction: right-hand Type: H R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: red ring Threads: M Tolerance class thread: ISO2/6H Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 16.000 Weight: 0.086 No of cutting edges: 4 Total length: 110.000 Thread length: 20.000 Groove length: 50.000 Usable length: 54.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 14.00 Shank Ø: 12.000 Nominal dimension thread: M16 Pitch: 2.000 External Ø: 16.090 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
