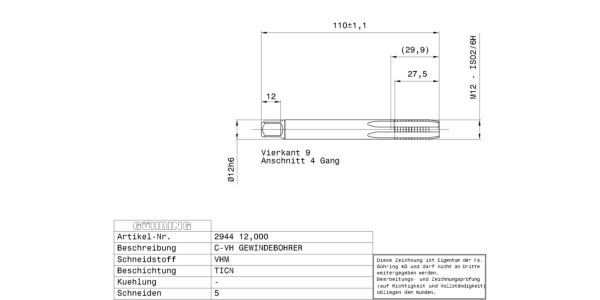

Guhring Metric Taps Carbide TiCN Coated M12

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: TiCN
Discount group: 103
Type: 2944
Cutting direction: Right-hand
Type: H
Material: Solid carbide
Additional information: Internal threading
Form: D
Threads: M
Tolerance class thread: ISO2/6H
Hole type: Through-, blind hole
Groove: Straight-fluted cutting edges
Chamfer lead length: 3.5-5
Variety: 62
Code no.: 12.000
Weight: 0.156
No of cutting edges: 5
Total length: 110.000
Thread length: 28.000
Groove length: 45.000
Usable length: 28.000
Norm 2: Company std.
Wrench opening 1: 9.000
Core hole Ø: 10.40
Shank Ø: 12.000
Nominal dimension thread: M12
Pitch: 1.750
External Ø: 12.080
Reach length: 35.000
Body Ø: 12.000
Statistical goods number: 82074010
