Guhring No. 10-24 3pce Hand Tap Set UNC Threads HSS

Product Code: 981 4,826

$181.84$165.31 Ex. GST

Product Code: 981 4,826 SKU 981 4,826 Category CUTTING TOOLS (HSS & Carbide)

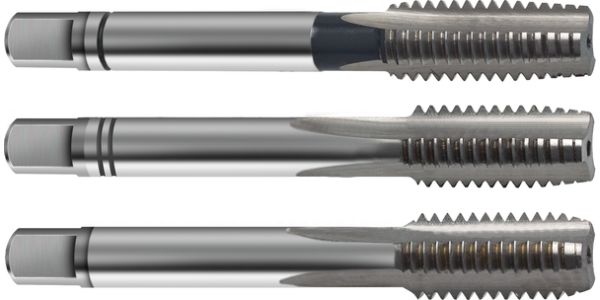

Guhring No. 10-24 3pce Hand Tap Set UNC Threads HSS

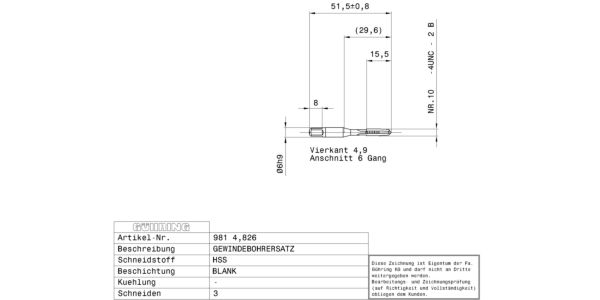

Guhring No. 10-24 3pce Hand Tap Set UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for UNC-threads 10 – 24 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0010 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 981 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 4.826 Weight: 0.001 Number parts per set: 3.00 No of cutting edges: 3 Total length: 50.000 Thread length: 14.000 Groove length: 20.000 Norm 2: DIN 2184-2 Wrench opening 1: 4.900 Neck Ø: 3.500 Core hole Ø: 3.90 Shank Ø: 6.000 Nominal dimension thread: 10 – 24 Pitch: 1.058 Pitch thread/inch: 24.000 Statistical goods number: 82074010

Brand

Guhring
