Guhring No. 10-24 UNC Spiral Taps HSS-E Yellow band

Product Code: 876 4,826

$84.94$77.22 Ex. GST

Product Code: 876 4,826 SKU 876 4,826 Category CUTTING TOOLS (HSS & Carbide)

Guhring No. 10-24 UNC Spiral Taps HSS-E Yellow band

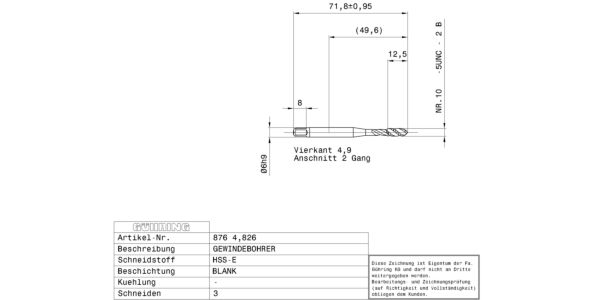

Guhring No. 10-24 UNC Spiral Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 10 – 24 / 2B / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0110 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 371 Surface: bright Discount group: 103 Type: 876 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNC Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 4.826 Weight: 0.011 No of cutting edges: 3 Total length: 70.000 Thread length: 11.000 Groove length: 21.000 Usable length: 25.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 3.800 Core hole Ø: 3.90 Shank Ø: 6.000 Nominal dimension thread: 10 – 24 Pitch: 1.058 External Ø: 4.900 Pitch thread/inch: 24.000 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
