Guhring PM HSS-E FLUTELESS TAPS 1/4 -28 UNF TiCN-COATED

Product Code: 4492 6,350

$190.83$173.48 Ex. GST

Product Code: 4492 6,350 SKU 4492 6,350 Category CUTTING TOOLS (HSS & Carbide)

Guhring PM HSS-E FLUTELESS TAPS 1/4 -28 UNF TiCN-COATED

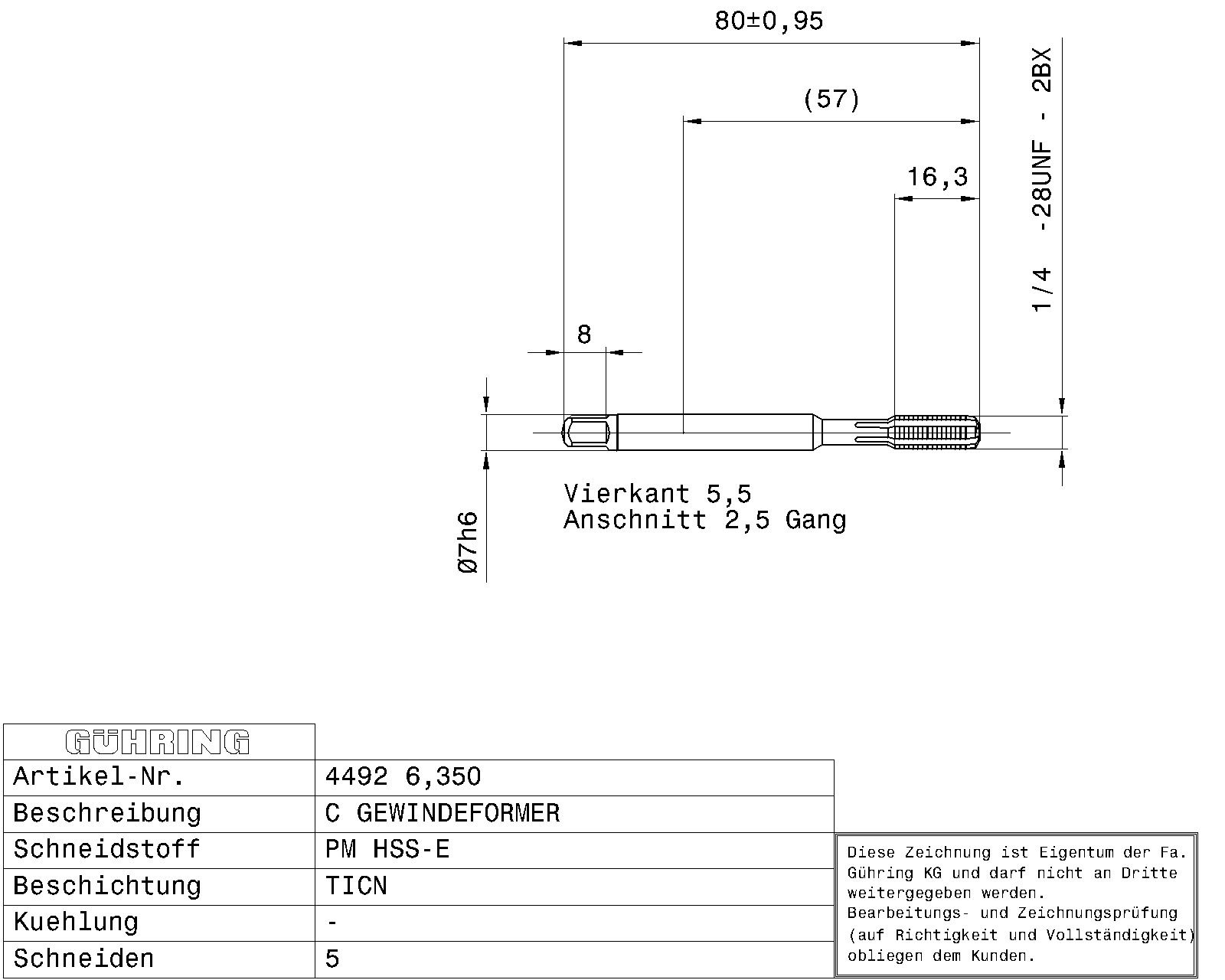

Guhring PM HSS-E FLUTELESS TAPS 1/4 -28 UNF TiCN-COATED - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for UNF-threads 1/4 – 28 / 2BX / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.0240 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: ~DIN 371 Surface: TiCN Discount group: 208 Type: 4492 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: UNF Tolerance class thread: 2BX Hole type: Through, Blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 6.350 Weight: 0.024 Number of cutting edges: 5 Total length: 80.000 Thread length: 16.000 Groove length: 23.800 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening: 5.500 Neck Ø: 4.900 Core hole Ø: 5.95 Shank Ø: 7.000 Nominal dimension thread: 1/4 – 28 External Ø: 6.420 Pitch thread/inch: 28.000 Reach length: 59.000 Body Ø: 7.000 Statistical goods number: 82074010

Brand

Guhring
