Guhring PM HSS-E FLUTELESS TAPS 5/16 -24 UNF TiCN-COATED

Product Code: 4492 7,938

$211.34$192.13 Ex. GST

Product Code: 4492 7,938 SKU 4492 7,938 Category CUTTING TOOLS (HSS & Carbide)

Guhring PM HSS-E FLUTELESS TAPS 5/16 -24 UNF TiCN-COATED

Guhring PM HSS-E FLUTELESS TAPS 5/16 -24 UNF TiCN-COATED - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

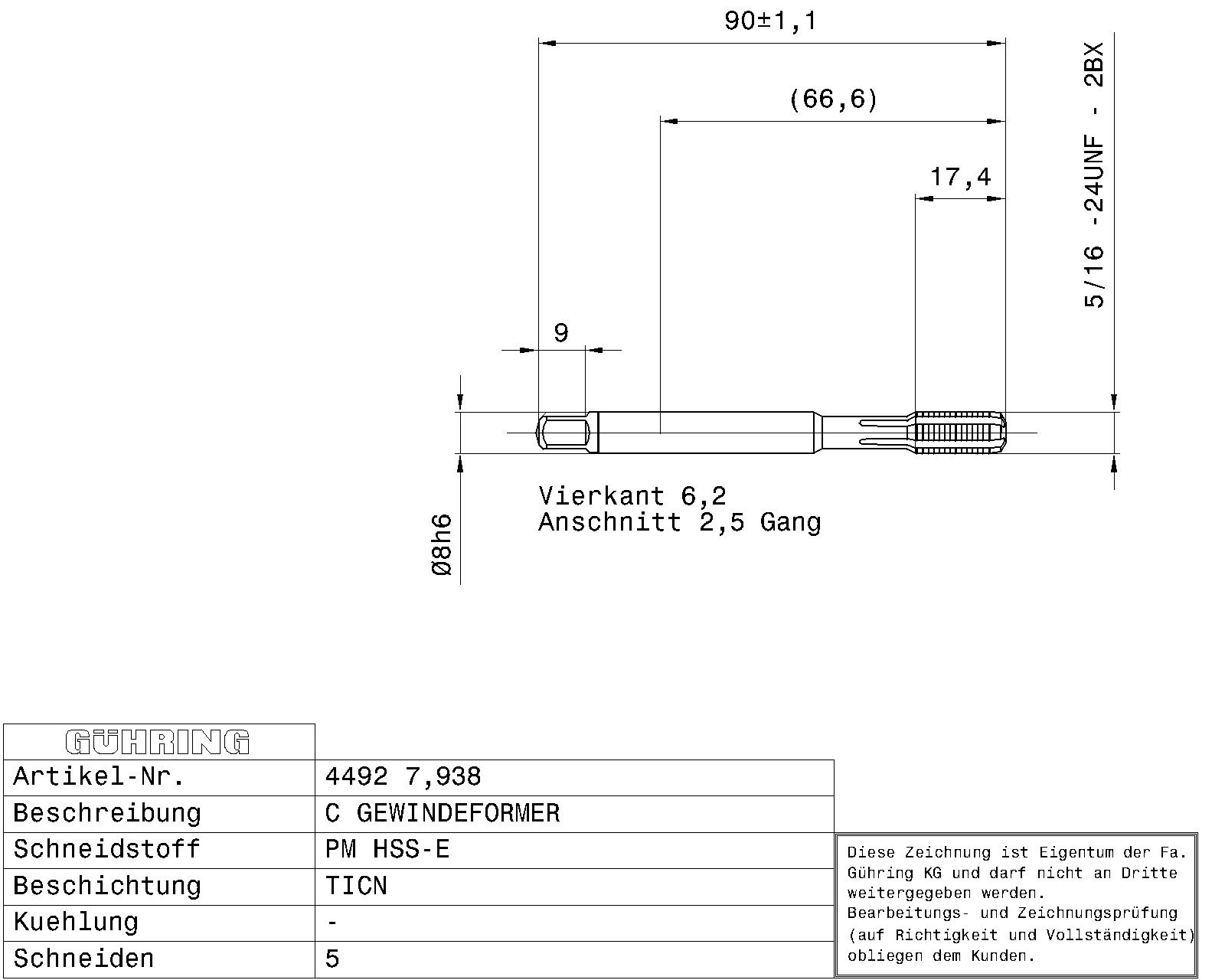

Fluteless machine taps for UNF-threads 5/16 – 24 / 2BX / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.0360 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: ~DIN 371 Surface: TiCN Discount group: 208 Type: 4492 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: UNF Tolerance class thread: 2BX Hole type: Through, Blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 7.938 Weight: 0.036 Number of cutting edges: 5 Total length: 90.000 Thread length: 17.000 Groove length: 28.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening: 6.200 Neck Ø: 6.200 Core hole Ø: 7.45 Shank Ø: 8.000 Nominal dimension thread: 5/16 – 24 External Ø: 8.010 Pitch thread/inch: 24.000 Reach length: 69.000 Body Ø: 8.000 Statistical goods number: 82074010

Brand

Guhring
