Guhring PM HSS-E FLUTELESS TAPS 5/8 -11 UNC TiCN-COATED

Connection code machine side: Straight shank
Internal cooling: Without
Norm: ~DIN 376
Surface: TiCN
Discount group: 208
Type: 4491
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: UNC
Tolerance class thread: 2BX
Hole type: Through, Blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 15.875
Weight: 0.105
Number of cutting edges: 8

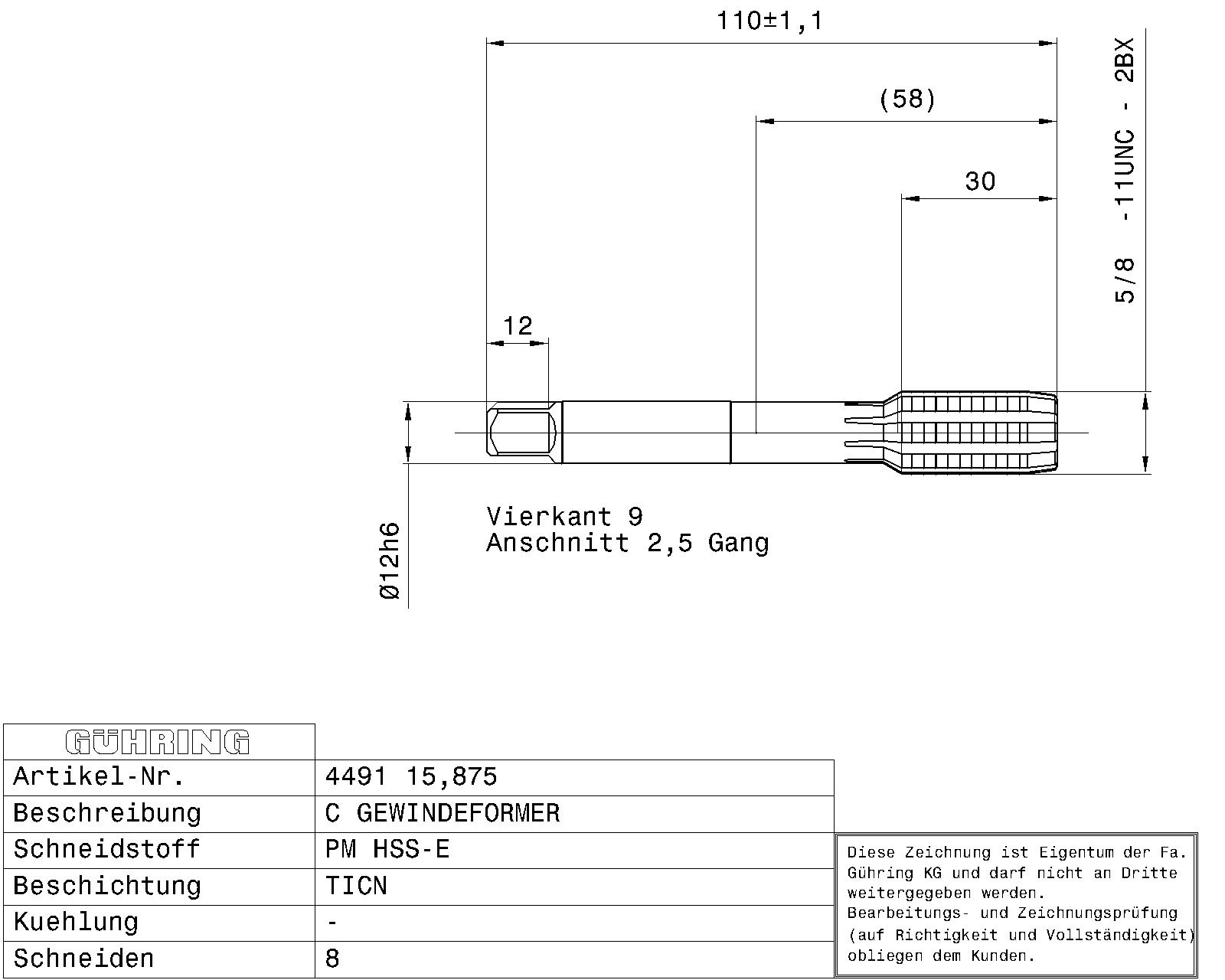

Total length: 110.000
Thread length: 30.000
Groove length: 41.000
Usable length: 53.000
Norm 2: DIN 2184-1
Wrench opening: 9.000
Neck Ø: 11.800
Core hole Ø: 14.80
Shank Ø: 12.000
Nominal dimension thread: 5/8 – 11
External Ø: 15.970
Pitch thread/inch: 11.000
Reach length: 58.000
Body Ø: 12.000
Statistical goods number: 82074010
