Guhring Ratio Drill 20 x D Solid Carbide with IC

Description

Ratio drills with coolant ducts Solid carbide / Ø 3.000 mm h7 / 20xD / Company std. / Surface: TiAlN / Cutting direction: right-hand / relieved cone 135°
Execution: Web thinning ≥ Ø 3.000 mm • main cutting edge form concave • optimised flute cross-section • maximum diameter of coolant ducts • observe coolant pressure
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • stainless steels • cast materials

Additional information

Weight	0.0180 kg
Dimensions
barcode

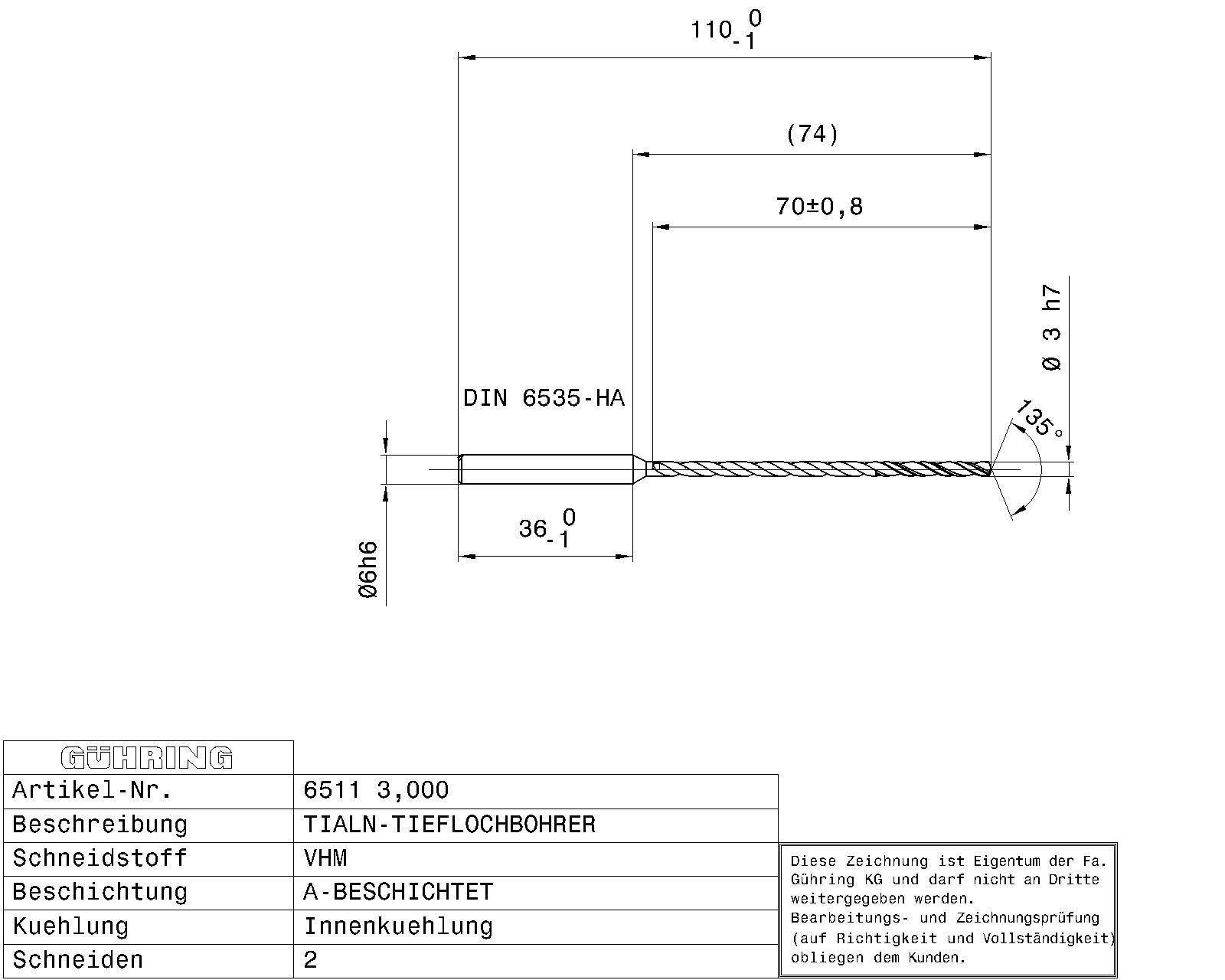

Additional Information	Point grinding: facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3 Nominal Ø tolerance field: h7 Internal cooling: with Norm: Company std. Surface: TiAlN Discount group: 165 Type: 6511 Cutting direction: right-hand Type: RT 100 T Point angle: 135 Material: Solid carbide Additional information: Tip coated (Variety): 48 Code no.: 3 Weight: 0.018 No of cutting edges: 2 Total length: 110 Groove length: 70 Usable length: 66 Shank Ø: 6 Shank length: 36 Nominal Ø mm: 3 Statistical goods number: 82075050
