Guhring Ratio End Mill RF100 VA - IC 36°/38° NANO-A COATED For Stainless Steel

Description

Ratio end mills RF 100 VA with Internal cooling / Ø 16.000 mm / h10 / DIN 6527L / Solid carbide / TiAlN-nanoA / Type: N / Form: A / Cutting direction: right-hand /
Execution: with internal cooling • neck clearance • centre cutting

Additional information

Weight	0.2280 kg
Dimensions
barcode

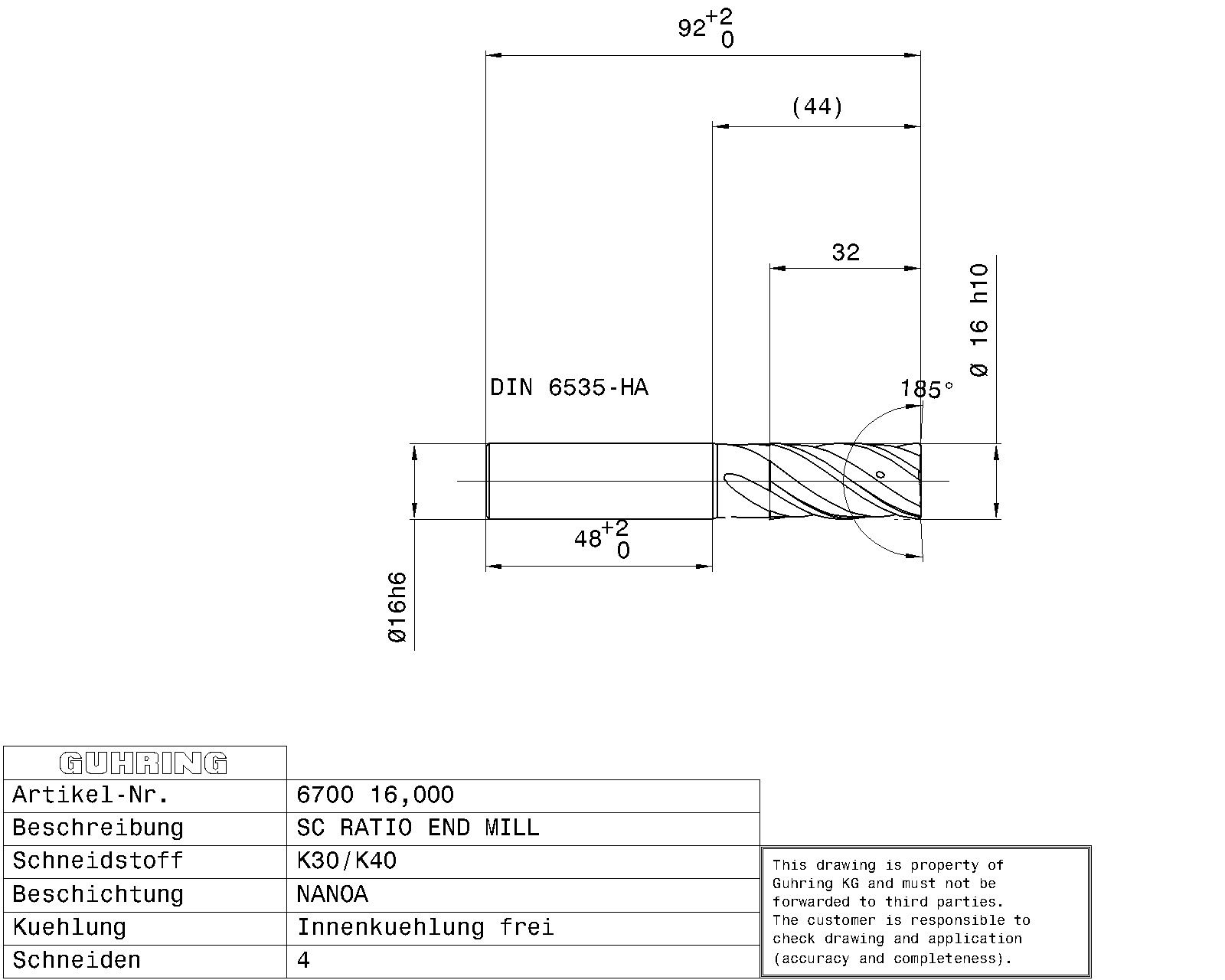

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: with Norm: DIN 6527L Surface: TiAlN-nanoA Discount group: 106 Type: 6700 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 4 Form: A Helix angle: 36/38 Code no.: 16.000 Weight: 0.228 Total length: 92.000 Groove length: 43.200 Usable length: 42.000 Neck Ø: 15.500 Shank Ø: 16.000 Nominal Ø mm: 16.000 Cutting edge length: 32.000 Reach length: 44.000 Corner chamfer: 0.500 Statistical goods number: 82077010

Guhring Ratio End Mill RF100 VA – IC 36°/38° NANO-A COATED For Stainless Steel
