Guhring SOL.CARBIDE RF100 SPEED END MILL SUPER A GUHRING STD. 4-FLUTE 48° HELIX R.H. HA-SHANK

Description

Ratio end mills RF 100 Speed M / Ø 10.000 mm / h10 / Company std. / Solid carbide / TiAlN-SuperA / Type: NH / Form: A / Cutting direction: right-hand /
Execution: slotting up to max. 0.8xD depth • re-inforced core from Ø 6 mm • centre cutting

Additional information

Weight	0.0870 kg
Dimensions
barcode

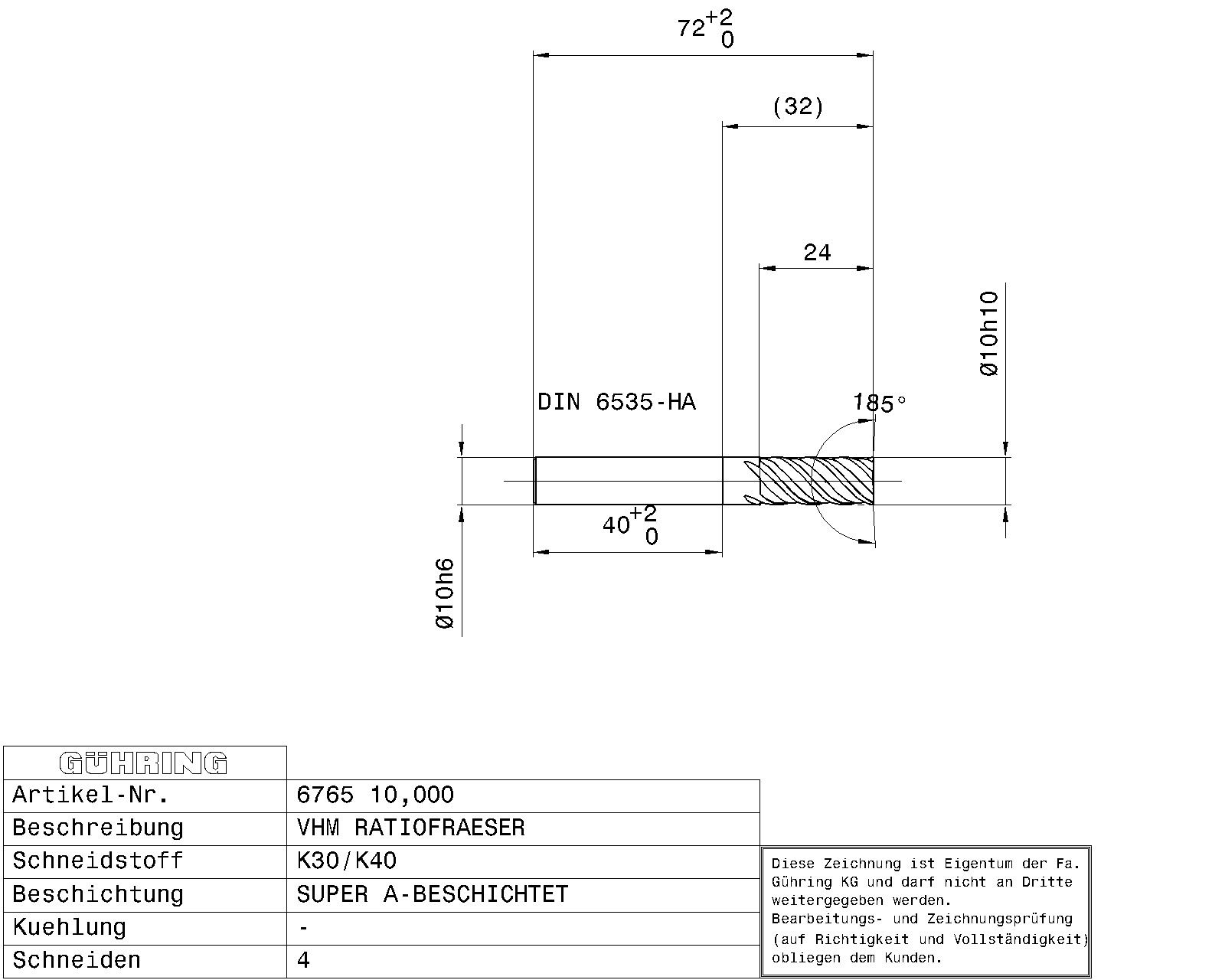

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: TiAlN-SuperA Discount group: 106 Type: 6765 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 4 Form: A Helix angle: 48 Code no.: 10.000 Weight: 0.087 Total length: 72.000 Groove length: 28.000 Usable length: 32.000 Shank Ø: 10.000 Nominal Ø mm: 10.000 Cutting edge length: 24.000 Reach length: 32.000 Corner chamfer: 0.200 Statistical goods number: 82077010

Guhring SOL.CARBIDE RF100 SPEED END MILL SUPER A GUHRING STD. 4-FLUTE 48° HELIX R.H. HA-SHANK
