Guhring SOL.CARBIDE RF100 SPEED END MILL SUPER A GUHRING STD. 4-FLUTE 48° HELIX R.H. HB-SHANK

Description

Ratio end mills RF 100 Speed M / Ø 16.000 mm / h10 / Company std. / Solid carbide / TiAlN-SuperA / Type: NH / Form: B / Cutting direction: right-hand /
Execution: with chip breaker • re-inforced core from Ø 6 mm • centre cutting

Additional information

Weight	0.2900 kg
Dimensions
barcode

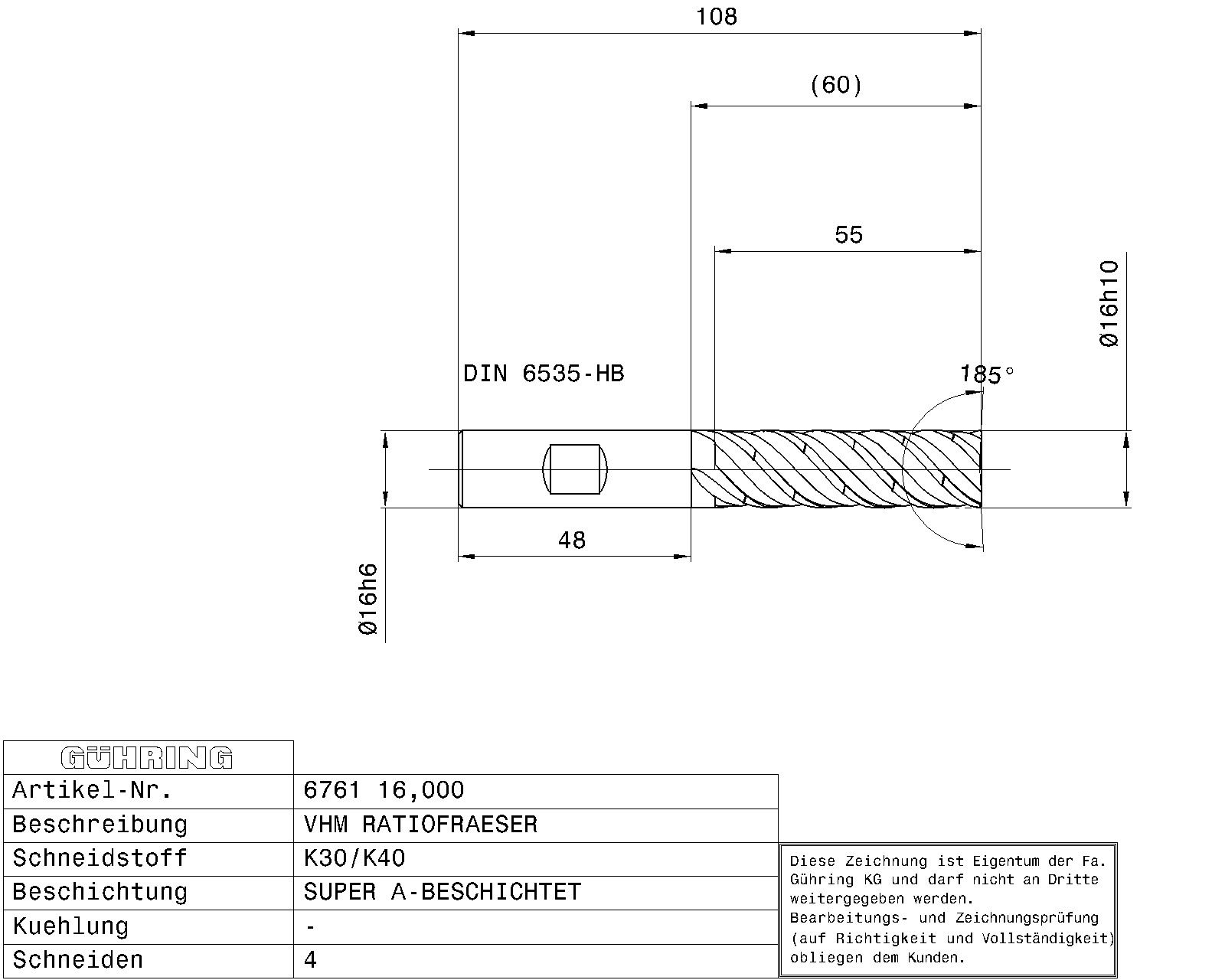

Additional Information	Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: TiAlN-SuperA Discount group: 106 Type: 6761 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 4 Form: B Helix angle: 48 Code no.: 16.000 Weight: 0.290 Total length: 108.000 Groove length: 61.000 Usable length: 60.000 Shank Ø: 16.000 Nominal Ø mm: 16.000 Cutting edge length: 55.000 Reach length: 60.000 Corner chamfer: 0.320 Statistical goods number: 82077010
