Guhring SOLID CARB. A-DRILL IC - 8XD EXCLUSIVE LINE - Millers Tooling Pty Ltd Shop Online

Description

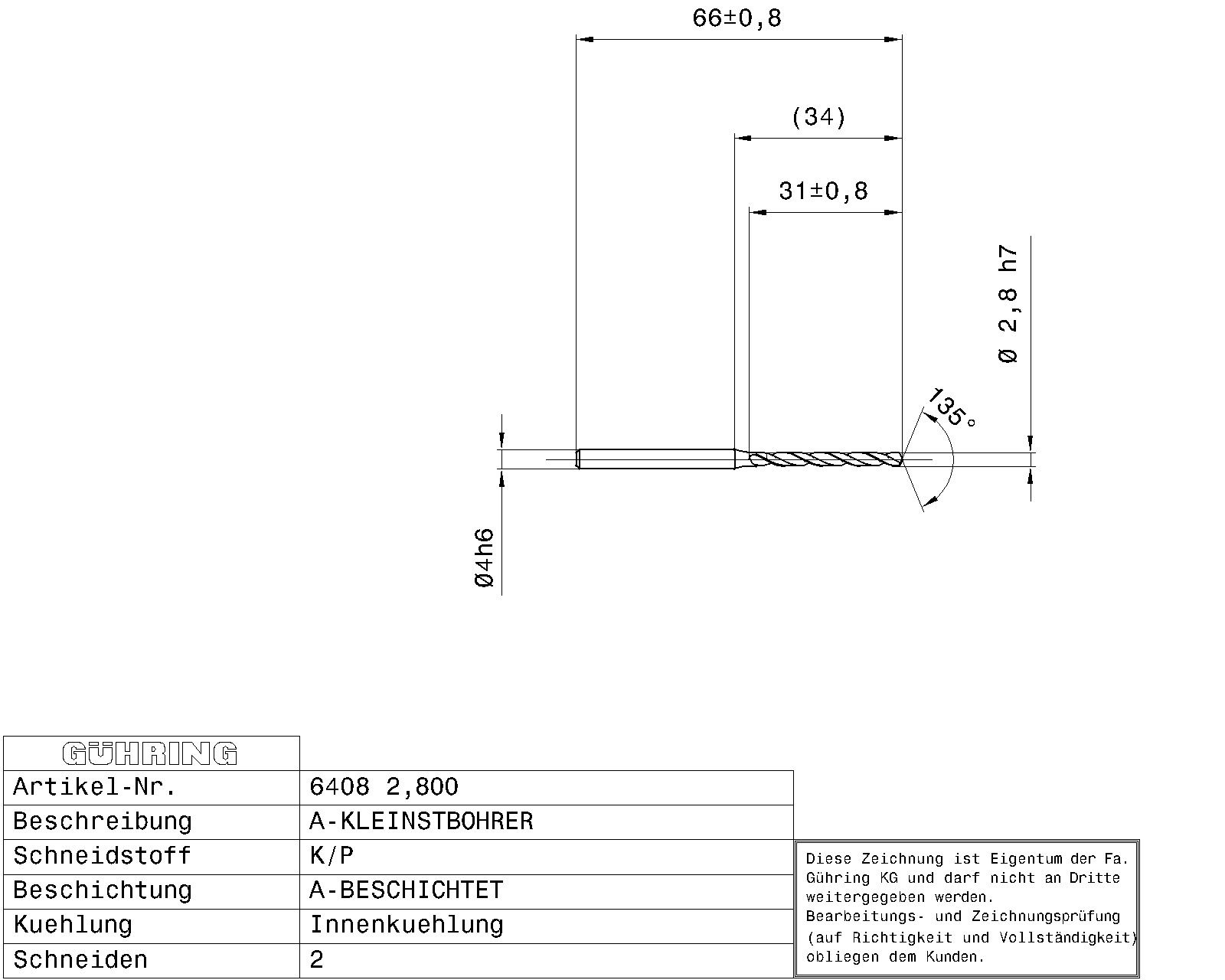

ExclusiveLine micro-precision drills with coolant ducts Solid carbide / Ø 2.800 mm h7 / Company std. / Surface: TiAlN / Cutting direction: right-hand / facet point grinding 135°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • main cutting edge form straight • with main cutting edge preparation
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • stainless steels • cast materials

Additional information

Weight	0.0170 kg
Dimensions
barcode
Additional Information	Point grinding: facet point grinding Connection code machine side: straight shank Ø-Thinning: 1.000 Nominal Ø tolerance field: h7 Internal cooling: with Norm: Company std. Surface: TiAlN Discount group: 164 Type: 6408 Cutting direction: right-hand Point angle: 135° Material: Solid carbide Variety: 48 Code no.: 2.800 Weight: 0.017 Number of cutting edges: 2 Total length: 66.000 Groove length: 31.000 Usable length: 27.500 Shank Ø: 4.000 Nominal Ø mm: 2.800 Reach length: 34.000 Statistical goods number: 82075050

Guhring SOLID CARB. A-DRILL IC – 8XD EXCLUSIVE LINE

Need Technical Advice?

Description

Additional information

Brand

Guhring
