Guhring SOLID CARB. A-DRILL IC – 8XD EXCLUSIVE LINE

Product Code: 6408 2,100

$313.89$285.35 Ex. GST

Product Code: 6408 2,100 SKU 6408 2,100 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

ExclusiveLine micro-precision drills with coolant ducts Solid carbide / Ø 2.100 mm h7 / Company std. / Surface: TiAlN / Cutting direction: right-hand / facet point grinding 135°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • main cutting edge form straight • with main cutting edge preparation
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • stainless steels • cast materials

Additional information

Weight 0.0160 kg

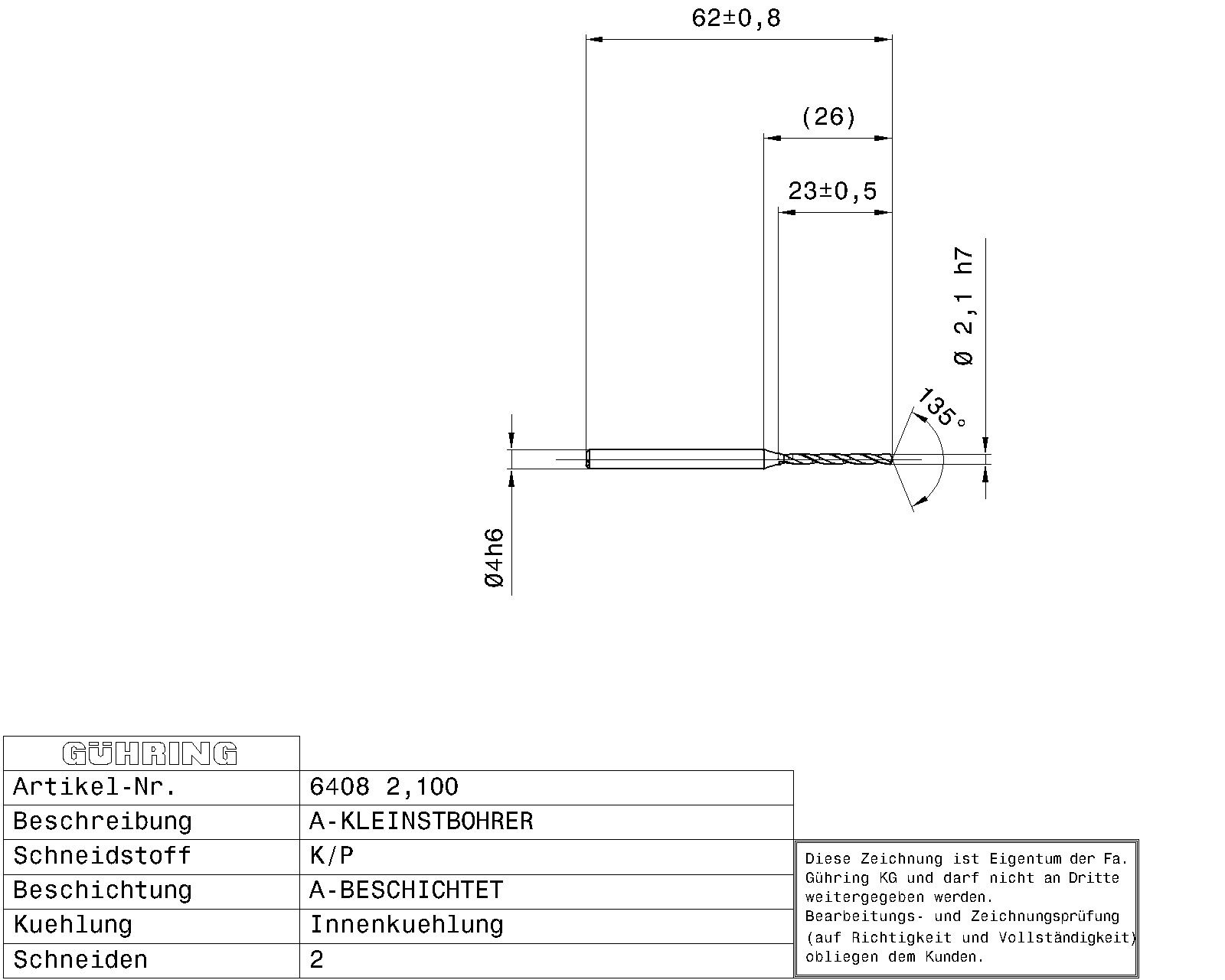

Dimensions
barcode
Additional Information

Point grinding: facet point grinding
Connection code machine side: straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h7
Internal cooling: with
Norm: Company std.
Surface: TiAlN
Discount group: 164
Type: 6408
Cutting direction: right-hand
Point angle: 135°
Material: Solid carbide
Variety: 48
Code no.: 2.100
Weight: 0.016
Number of cutting edges: 2
Total length: 62.000
Groove length: 23.000
Usable length: 20.100
Shank Ø: 4.000
Nominal Ø mm: 2.100
Reach length: 26.000
Statistical goods number: 82075050

Brand

Guhring
