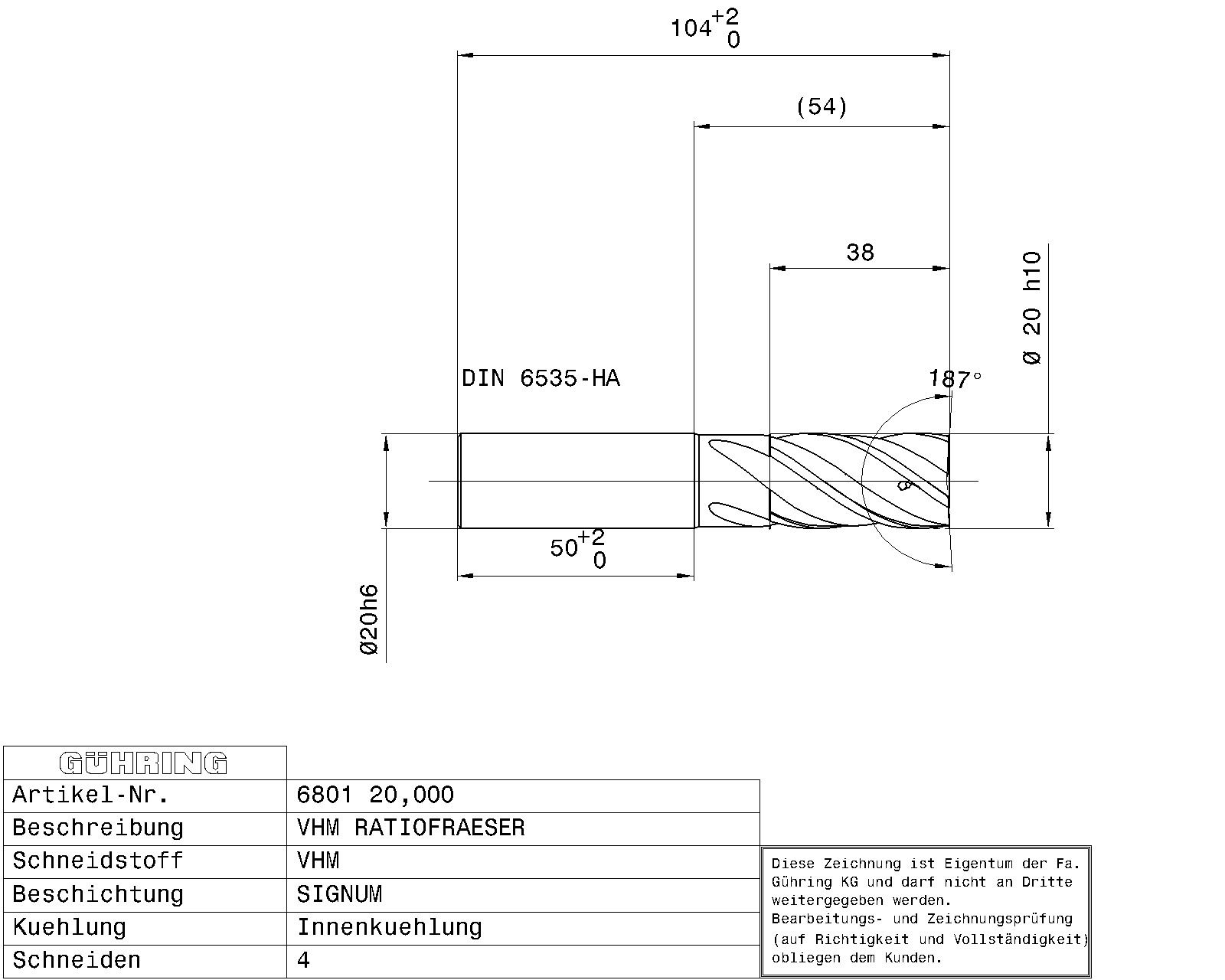

Guhring SOLID CARB. RF100 DIVER END MILL SIGNUM 4 FLUTES I.C. 36/38/37° HELIX HA

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h10
Internal cooling: with
Norm: DIN 6527L
Surface: Signum
Discount group: 106
Type: 6801
Cutting direction: right-hand
Type: N
Material: Solid carbide
Identification (Article No.): New
No of cutting edges: 4
Variety: ≤ 48
Helix angle: 36/38/37
Code no.: 20.000
Weight: 0.010
Total length: 104.000
Groove length: 52.000
Usable length: 52.000
Neck Ø: 19.500
Shank Ø: 20.000
Nominal Ø mm: 20.000
Cutting edge length: 38.000
Reach length: 54.000
Corner chamfer: 0.200
Statistical goods number: 82077010
