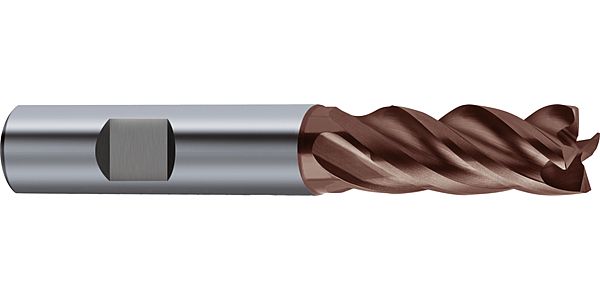

Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating

Connection code machine side: DIN 6535-HB
Nominal Ø tolerance field: h10
Internal cooling: without
Norm: DIN 6527L
Surface: Signum
Discount group: 106
Type: 6736
Cutting direction: right-hand
Type: NH
Material: Solid carbide
No of cutting edges: 4
Form: B
(Variety): ≤ 48
Helix angle: 36/38/37
Code no.: 5.700
Weight: 0.024
Total length: 57.000
Groove length: 16.990
Usable length: 19.600
Neck Ø: 5.500
Shank Ø: 6.000
Nominal Ø mm: 5.700
Cutting edge length: 13.000
Reach length: 21.000
Corner chamfer: 0.060
Statistical goods number: 82077010
