Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating

Product Code: 6736 14,000

$346.51$315.01 Ex. GST

Product Code: 6736 14,000 SKU 6736 14,000 Category CUTTING TOOLS (HSS & Carbide)

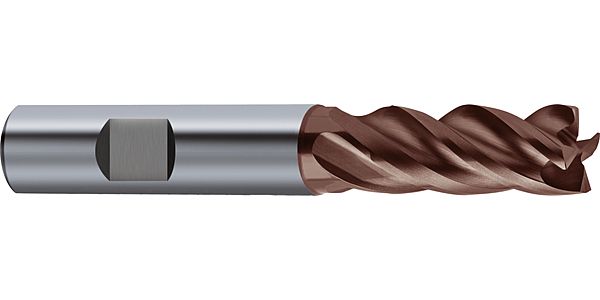

Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating

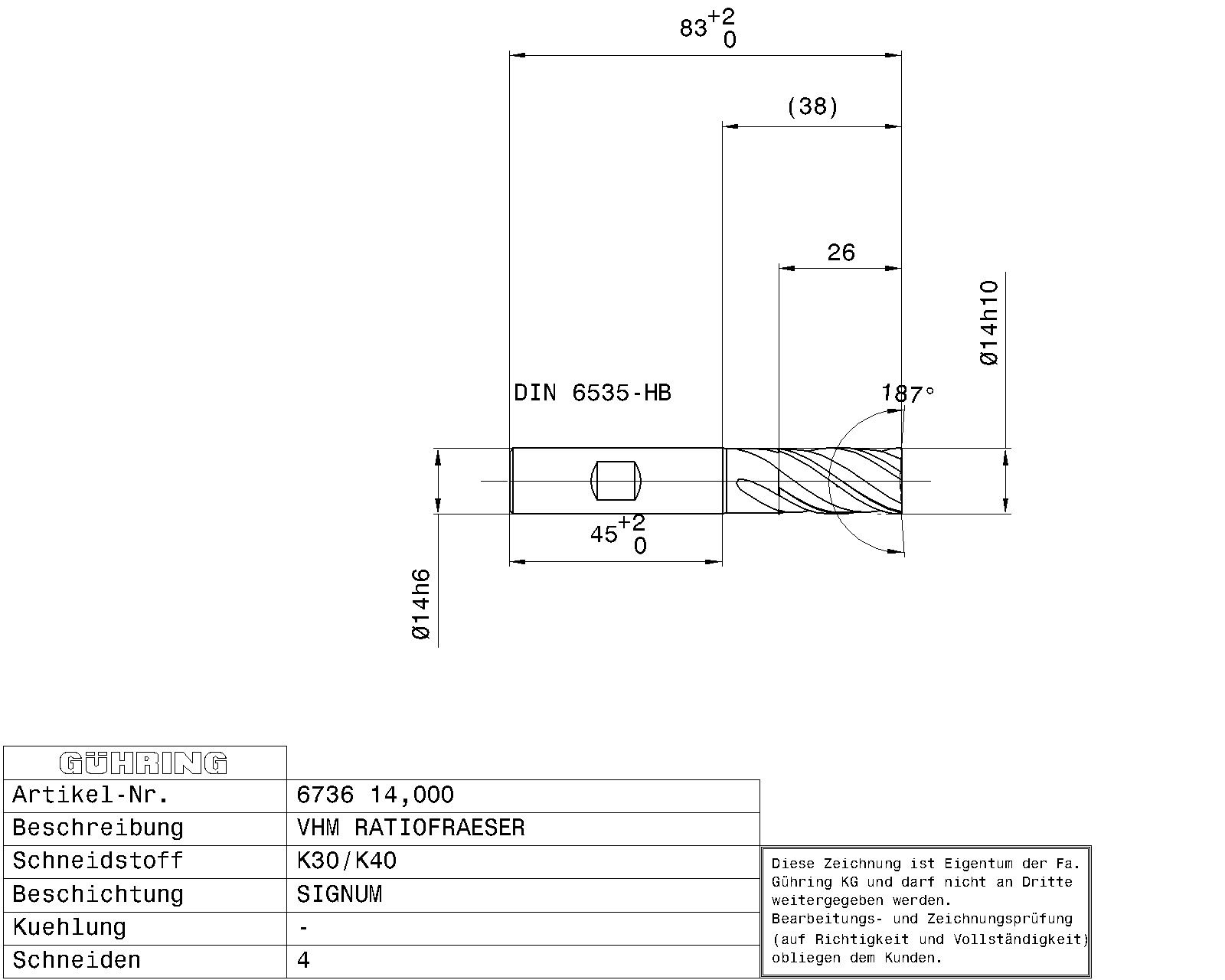

Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ratio end mills RF 100 diver / Ø 14.000 mm / h10 / DIN 6527L / Solid carbide / Signum / Type: NH / Form: B / Cutting direction: right-hand /
Execution: neck clearance • centre cutting

Additional information

Weight	0.1650 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: Signum Discount group: 106 Type: 6736 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 4 Form: B (Variety): ≤ 48 Helix angle: 36/38/37 Code no.: 14.000 Weight: 0.165 Total length: 83.000 Groove length: 35.800 Usable length: 36.000 Neck Ø: 13.500 Shank Ø: 14.000 Nominal Ø mm: 14.000 Cutting edge length: 26.000 Reach length: 38.000 Corner chamfer: 0.140 Statistical goods number: 82077010

Brand

Guhring
