Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating

Product Code: 6736 19,500

$850.26$772.96 Ex. GST

Product Code: 6736 19,500 SKU 6736 19,500 Category CUTTING TOOLS (HSS & Carbide)

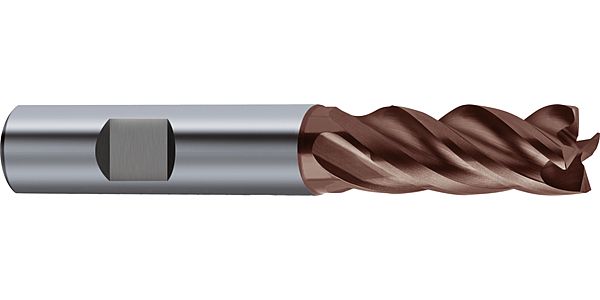

Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating

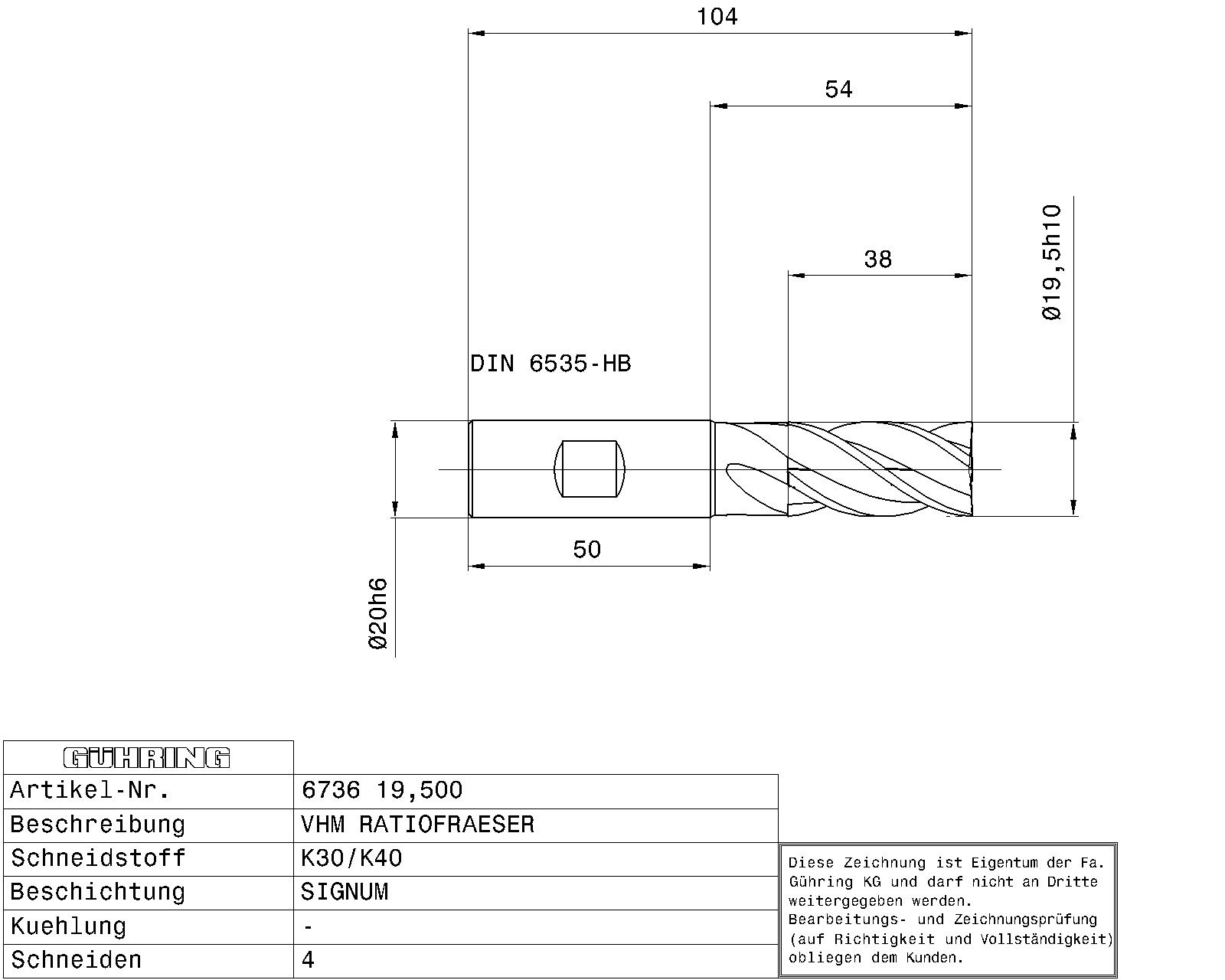

Guhring Solid Carbide RF100 DIVER END MILL 4FLUTE 36/38/37° Signum Coating - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ratio end mills RF 100 diver / Ø 19.500 mm / h10 / DIN 6527L / Solid carbide / Signum / Type: NH / Form: B / Cutting direction: right-hand /
Execution: neck clearance • centre cutting

Additional information

Weight	0.3860 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HB Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: Signum Discount group: 106 Type: 6736 Cutting direction: right-hand Type: NH Material: Solid carbide No of cutting edges: 4 Form: B Variety: ≤ 48 Helix angle: 36/38/37 Code no.: 19.500 Weight: 0.386 Total length: 104.000 Groove length: 51.650 Usable length: 51.100 Neck Ø: 19.000 Shank Ø: 20.000 Nominal Ø mm: 19.500 Cutting edge length: 38.000 Reach length: 54.000 Corner chamfer: 0.200 Statistical goods number: 82077010

Brand

Guhring
