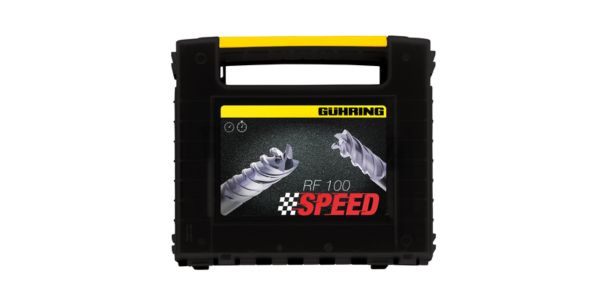

Guhring Solid Carbide RF100 Speed SET 4FLUTE 3 pieces of 12mm

Description

Sets Ratio end mills RF 100 Speed / h10 / Ø-Range 12.0 / Company std. / Solid carbide / TiAlN-SuperA / Type: NH / Form: A / Cutting direction: right-hand /
Execution: slotting up to max. 0.8xD depth • re-inforced core from Ø 6 mm • centre cutting • consisting of art. no. 6765

Additional information

Weight	0.4830 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: TiAlN-SuperA Discount group: 106 Type: 6778 Cutting direction: right-hand Type: NH Material: Solid carbide Identification (Article No.): New Additional information: 12.0 No of cutting edges: 4 Form: A Helix angle: 48 Code no.: 12.000 Range: 12.0 Weight: 0.483 Number parts per set: 3.00 Total length: 83.000 Groove length: 32.500 Usable length: 38.000 Shank Ø: 12.000 Cutting edge length: 28.000 Corner chamfer: 0.180 Statistical goods number: 82077010

Guhring Solid Carbide RF100 Speed SET 4FLUTE 3 pieces of 12mm

Need Technical Advice?

Description

Additional information

Brand

Guhring
