Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Spiral Tap HSS-E Left hand Yellow band

Guhring Spiral Tap HSS-E Left hand Yellow band

Product Code: 787 16,000

$265.18$241.07 Ex. GST

Product Code: 787 16,000 SKU 787 16,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Spiral Tap HSS-E Left hand Yellow band

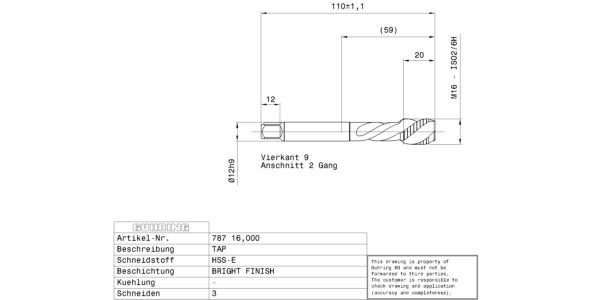

Guhring Spiral Tap HSS-E Left hand Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M16 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E / bright / Type: N L40-LH / Form: C / blind hole / Cutting direction: left-hand

Additional information

Weight	0.0860 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: bright Discount group: 103 Type: 787 Cutting direction: left-hand Type: N L40-LH Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: M Tolerance class thread: ISO2/6H Hole type: blind hole Groove: 40° left hand helix Chamfer lead length: 2-3 Code no.: 16.000 Weight: 0.086 No of cutting edges: 3 Total length: 110.000 Thread length: 20.000 Groove length: 50.000 Usable length: 54.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 14.00 Shank Ø: 12.000 Nominal dimension thread: M16 Pitch: 2.000 External Ø: 16.090 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
