Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Spiral Tap PM HSS-E TiN Coat Blue band

Guhring Spiral Tap PM HSS-E TiN Coat Blue band

Product Code: 60 14,000

$240.38$218.53 Ex. GST

Product Code: 60 14,000 SKU 60 14,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Spiral Tap PM HSS-E TiN Coat Blue band

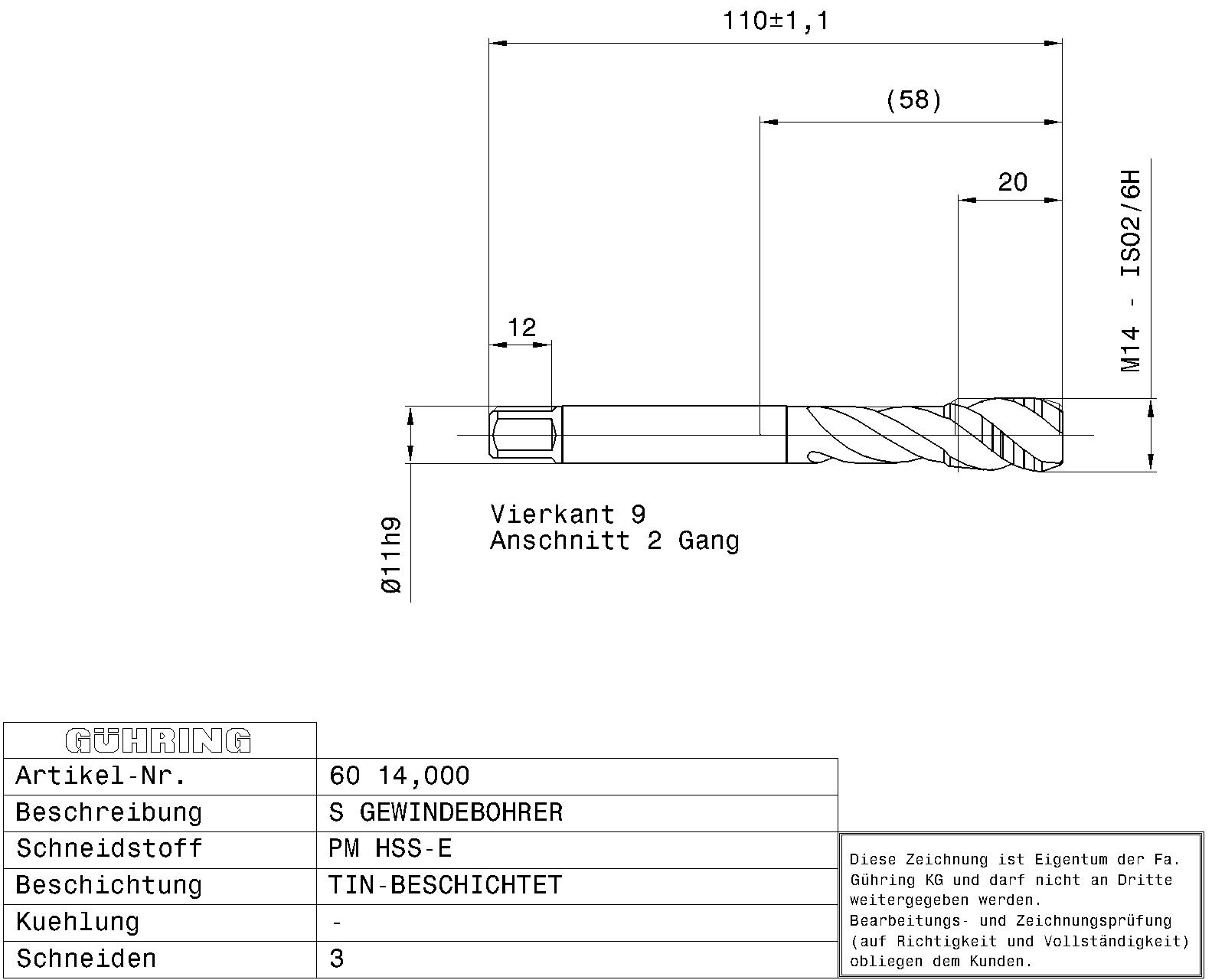

Guhring Spiral Tap PM HSS-E TiN Coat Blue band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M14 / ISO2/6H / 3xD / DIN 376 / DIN 2184-1 / HSS-E-PM / TiN / Type: VA R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0960 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: TiN Discount group: 103 Type: 60 Cutting direction: right-hand Type: VA R40 Material: HSS-E-PM Additional information: Internal threading Form: C Coloured ring: blue ring Threads: M Tolerance class thread: ISO2/6H Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 14.000 Weight: 0.096 No. of cutting edges: 3 Total length: 110.000 Thread length: 20.000 Groove length: 49.000 Usable length: 53.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 10.800 Core hole Ø: 12.00 Shank Ø: 11.000 Nominal dimension thread: M14 Pitch: 2.000 External Ø: 14.090 Reach length: 58.000 Statistical goods number: 82074

Brand

Guhring
