Guhring Step Power Drill HSS

Description

StepPower drills HSS / Ø 8.000 x 3.100 mm / DIN 338 / Surface: steam tempered / Cutting direction: right-hand / relieved cone 118°
Execution: novel multi step drill with up to 8 steps • 118° point geometry with an optimised split point geometry for precise centring and easy cutting • 3-flats on shank prevent slipping in the chuck • up to Ø 13.000 according to DIN 338 • from Ø 13.5 shank reinforced to Ø 12.7 • exact, circular holes • perfect for hand drills

Additional information

Weight	0.032 kg
Dimensions
barcode	9095000080000

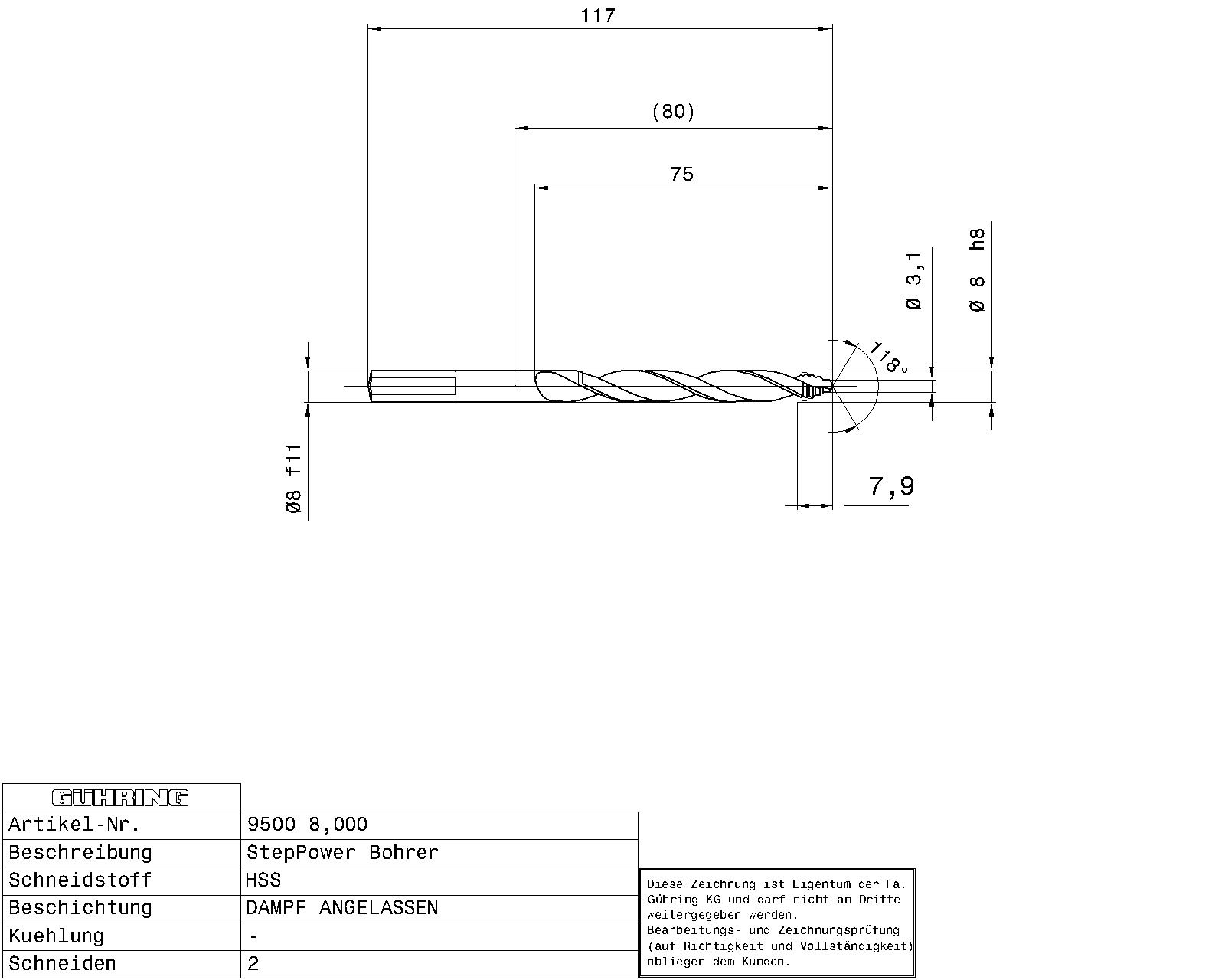

Additional Information	Point grinding: relieved cone Connection code machine side: 3-flats on shank Nominal Ø tolerance field: h8 Internal cooling: without Norm: DIN 338 Surface: steam tempered Discount group: 159 Type: 9500 Cutting direction: right-hand Type: N Point angle: 118 Material: HSS Angle step 1: 90.00 Identification (Article No.): ERWEITERT Angle step 2: 90.00 Code no.: 8.000 Weight: 0.032 No of cutting edges: 2 Total length: 117.000 Groove length: 75.000 Usable length: 64.000 Shank Ø: 8.000 Nominal Ø mm: 8.000 Step 1 length: 2.500 Step 2 length: 1.150 Step 1 Ø: 3.100 Step 2 Ø: 4.700 Additional information: 3-flats on shank Statistical goods number: 82075060
