Guhring Step Power Drill HSS

Description

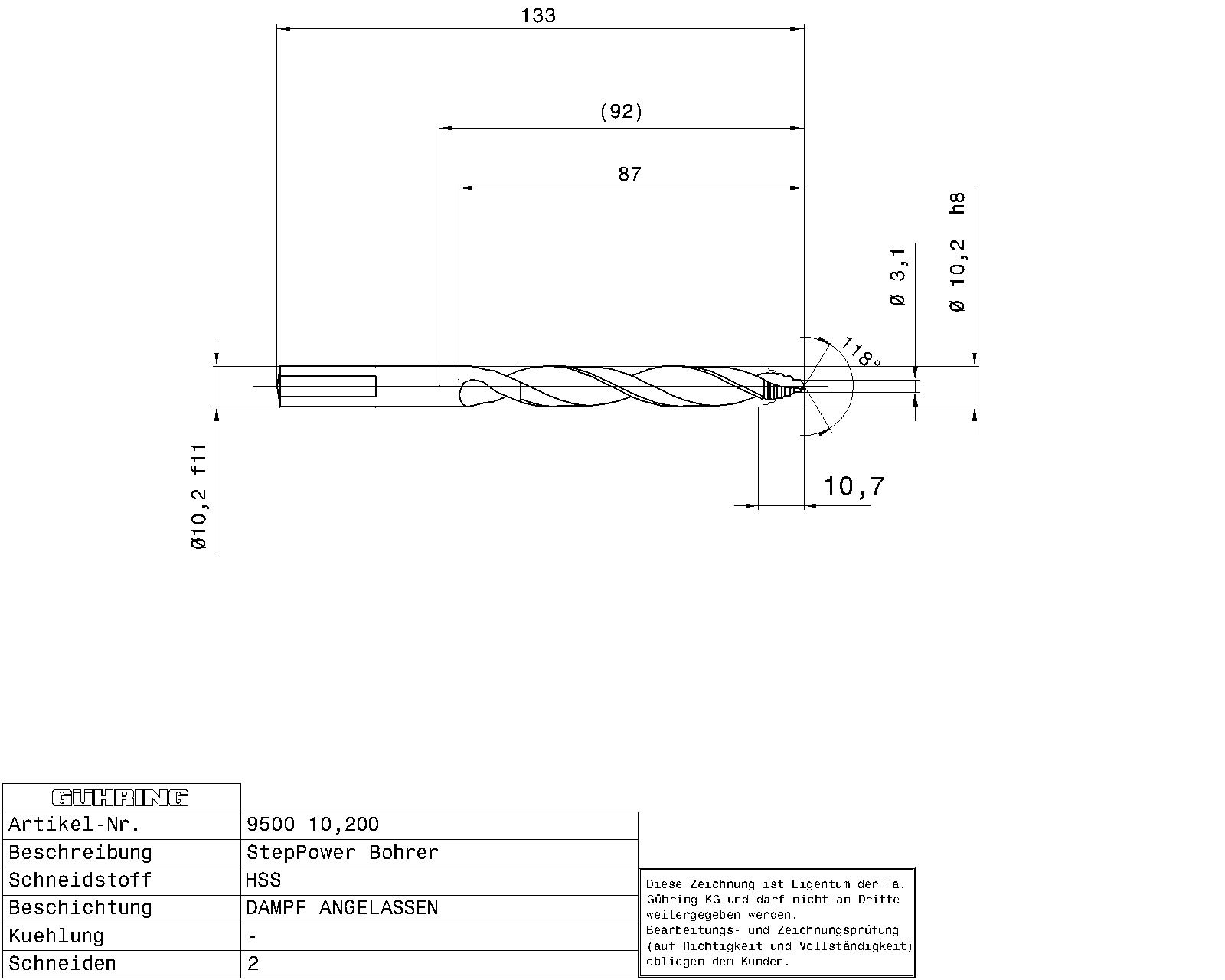

StepPower drill HSS / Ø 10.200 x 3.100 mm / DIN 338 / Surface: steam-treated / Cutting direction: right / Conical grinding 118°
Design: new type of twist drill with step-structured tip geometry up to 8 steps • 118° tip grinding with optimized, cutting-friendly cross point thinning for precise centering • 3-surface shaft prevents slipping in the drill chuck • up to Ø 13.000 according to DIN 338 • from Ø 13.5 shaft reduced to Ø 12.7 • precise, circular holes • ideal for hand drills

Additional information

Weight	0.061 kg
Dimensions
barcode	9095000102000
Additional Information	Point bevel: conical grinding Machine-side mounting type: 3-surface shaft Nominal diameter tolerance field: h8 Internal cooling: without Standard: DIN 338 Surface: steam-treated Discount group: 159 Variety: 9500 Cutting direction: right Type: N Tip angle: 118 Material: HSS Angle level 1: 90.00 Stamp (variety): EXTENDED Angle level 2: 90.00 Code number: 10,200 Weight: 0.061 Number of cutting edges: 2 Total length: 133,000 Groove length: 87,000 Length of use: 73,000 Shaft diameter: 10,200 Nominal diameter mm: 10,200 Length Level 1: 2,800 Length Level 2: 1,350 Ø-Level 1: 3,100 Ø-Level 2: 5,000 Additional information: 3-surface shaft Statistical commodity code: 82075060
