Guhring Step Power Drill HSS

Description

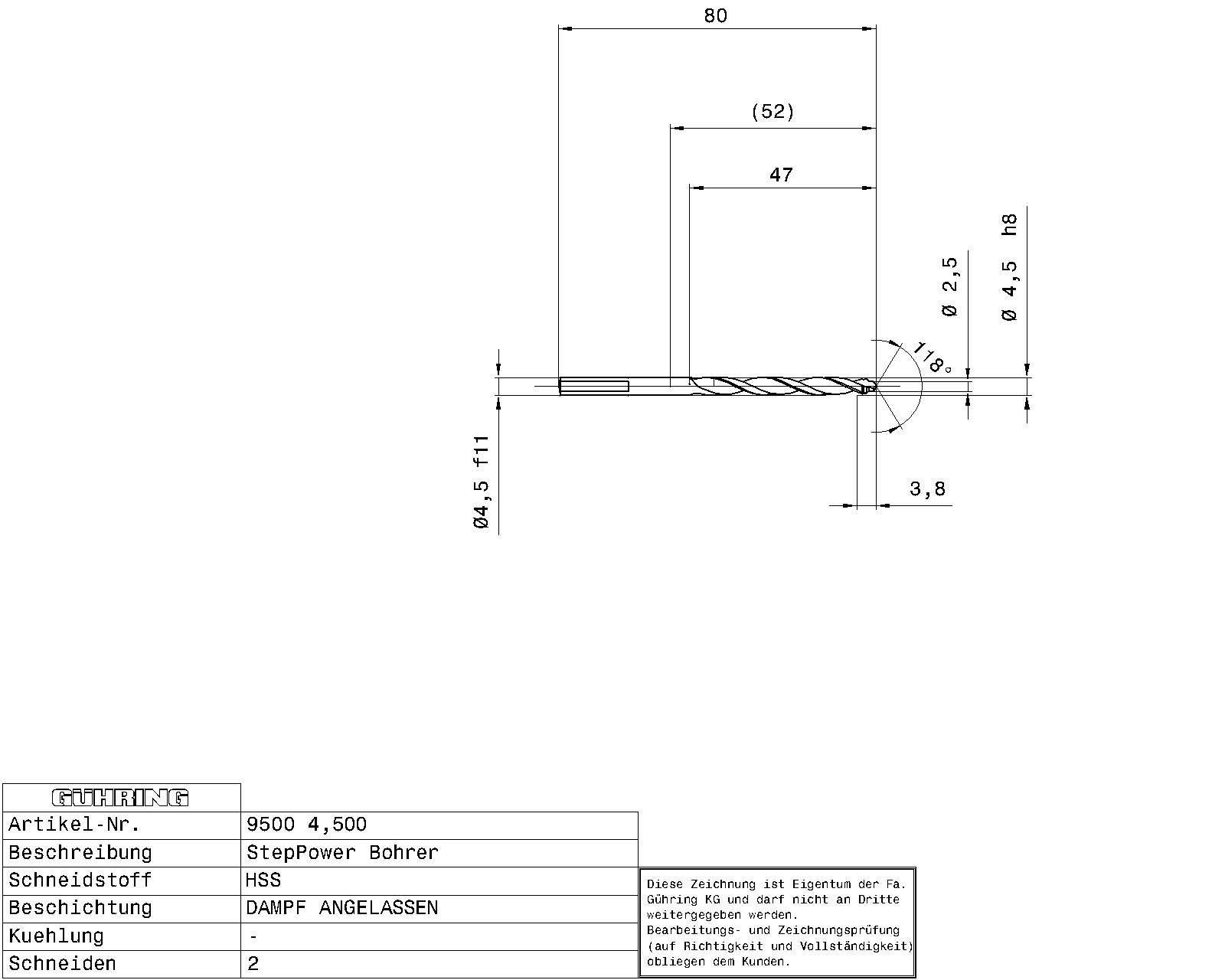

StepPower drill HSS / Ø 4,500 x 2,500 mm / DIN 338 / Surface: steam-treated / Cutting direction: right / Conical grinding 118°
Design: new type of twist drill with step-structured tip geometry up to 8 steps • 118° tip grinding with optimized, cutting-friendly cross point thinning for precise centering • 3-surface shaft prevents slipping in the drill chuck • up to Ø 13,000 according to DIN 338 • from Ø 13.5 shaft reduced to Ø 12.7 • precise, circular holes • ideal for hand drills

Additional information

Weight	0.008 kg
Dimensions
barcode	9095000045000
Additional Information	point bevel: conical grinding machine-side mounting type: 3-surface shaft nominal diameter tolerance field: h8 internal cooling: without standard: DIN 338 surface: steam-treated discount group: 159 variety: 9500 cutting direction: right type: N tip angle: 118 material: HSS angle level 1: 90.00 stamp (variety): EXTENDED angle level 2: 90.00 code number: 4,500 Weight: 0.008 number of cutting edges: 2 total length: 80,000 groove length: 47,000 length of use: 41,000 shaft diameter: 4,500 nominal diameter mm: 4,500 Length Level 1: 2,000 length level 2: 0.800 Ø-Level 1: 2,500 Ø-Level 2: 3,600 additional information: 3-surface shaft statistical commodity code: 82075060
