Guhring Stub drill HSCO

Description

Twist drills extra-short HSCO / Ø 10.500 mm h8 / ~3xD / DIN 1897 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight	0.0480 kg

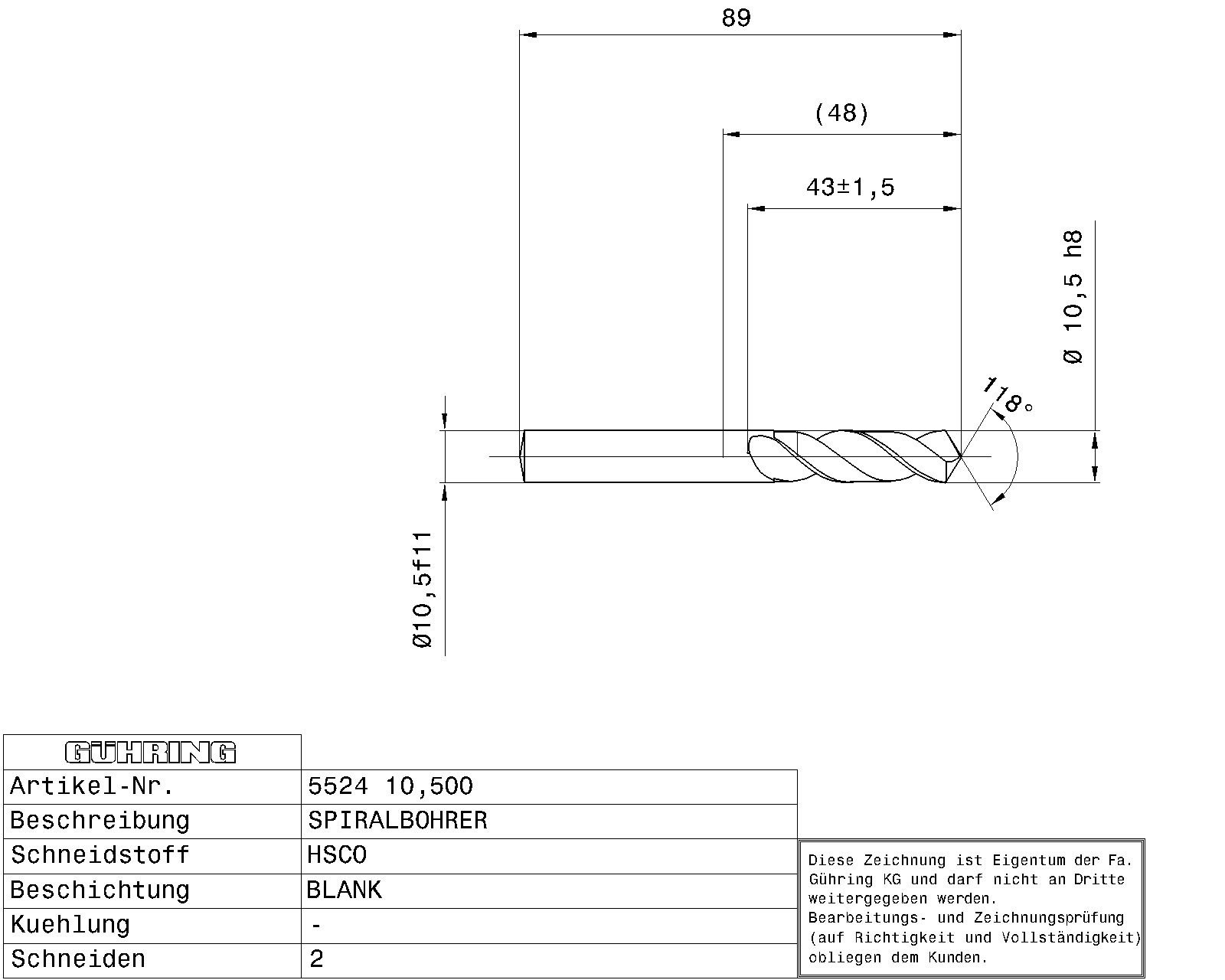

Dimensions
barcode
Additional Information	Point grinding: Facet point grinding Connection code machine side: Straight shank Ø-Thinning: 1.000 Nominal Ø tolerance field: h8 Internal cooling: Without Norm: DIN 1897 Surface: Bright Discount group: 159 Type: 5524 Cutting direction: Right-hand Type: GU 500 DZ Point angle: 118 Material: HSCO Code no.: 10.500 Weight: 0.048 No of cutting edges: 2 Total length: 89.000 Groove length: 43.000 Usable length: 33.000 Shank Ø: 10.500 Shank length: 46.000 Nominal Ø mm: 10.500 Statistical goods number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
