Guhring Stub drill HSCO TiN Coated

Description

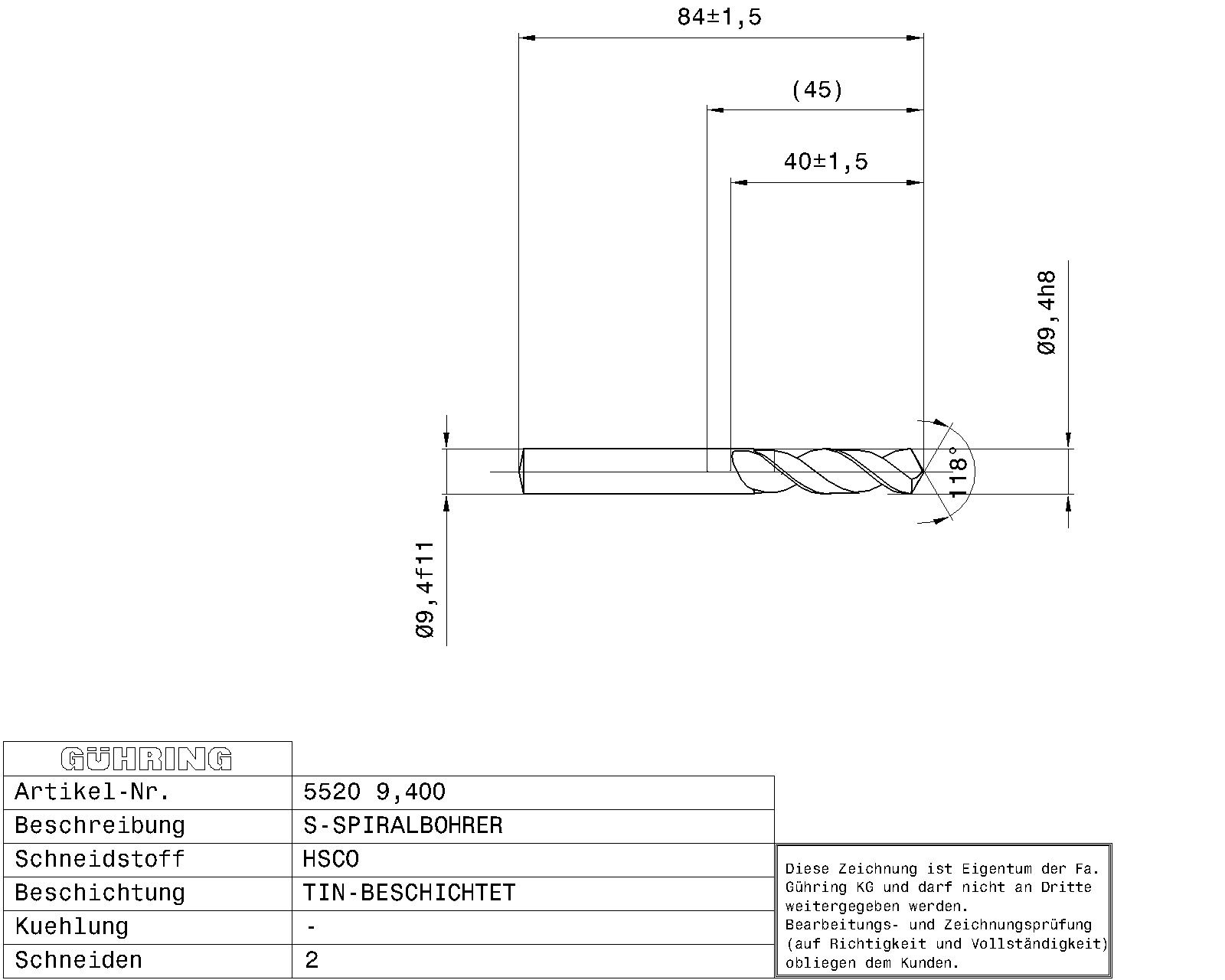

Twist drills extra-short HSCO / Ø 9.400 mm h8 / ~3xD / DIN 1897 / Surface: TiN / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight	0.0360 kg
Dimensions
barcode
Additional Information	Point Grinding: Facet Point Grinding Connection Code Machine Side: Straight Shank Ø-Thinning: 1.000 Nominal Ø Tolerance Field: h8 Internal Cooling: Without Norm: DIN 1897 Surface: TiN Discount Group: 159 Type: 5520 Cutting Direction: Right-hand Type: GU 500 DZ Point Angle: 118 Material: HSCO Code No.: 9.400 Weight: 0.036 No of Cutting Edges: 2 Total Length: 84.000 Groove Length: 40.000 Usable Length: 31.000 Shank Ø: 9.400 Shank Length: 44.000 Nominal Ø (mm): 9.400 Statistical Goods Number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
