Guhring Stub drill HSCO TiN Coated

Description

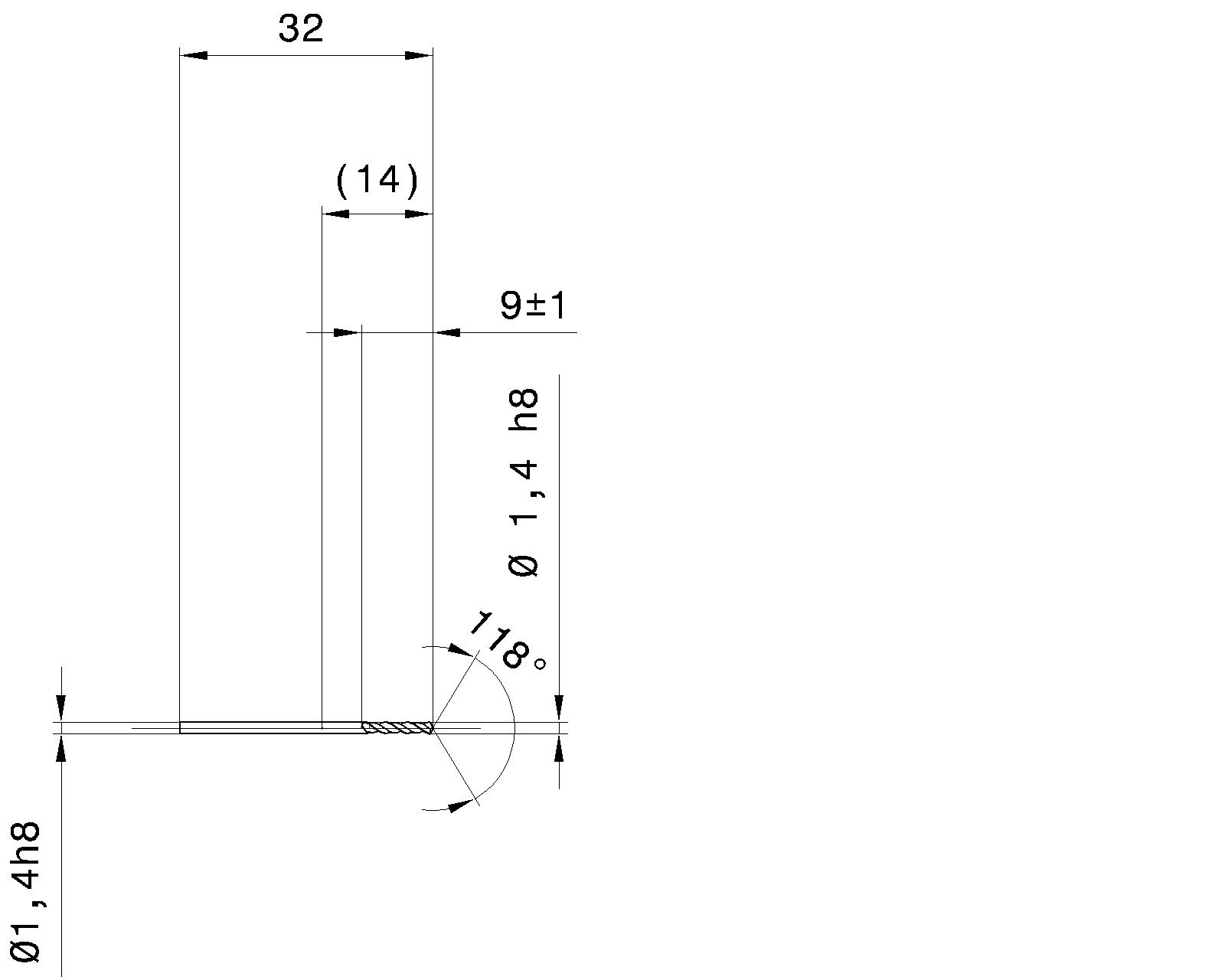

Twist drills extra-short HSCO / Ø 1.400 mm h8 / ~3xD / DIN 1897 / Surface: TiN / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight	0.0010 kg
Dimensions
barcode
Additional Information	Point grinding: Facet point grinding Connection code machine side: Straight shank Ø-Thinning: 1.000 Nominal Ø tolerance field: h8 Internal cooling: Without Norm: DIN 1897 Surface: TiN Discount group: 159 Type: 5520 Cutting direction: Right-hand Type: GU 500 DZ Point angle: 118 Material: HSCO Code no.: 1.400 Weight: 0.001 No of cutting edges: 2 Total length: 32.000 Groove length: 9.000 Usable length: 8.000 Shank Ø: 1.400 Shank length: 23.000 Nominal Ø mm: 1.400 Statistical goods number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
