Guhring Stub drill HSCO TiN Coated

Product Code: 5520 7,100

$59.75$54.32 Ex. GST

Product Code: 5520 7,100 SKU 5520 7,100 Category
Guhring Stub drill HSCO TiN Coated
Guhring Stub drill HSCO TiN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

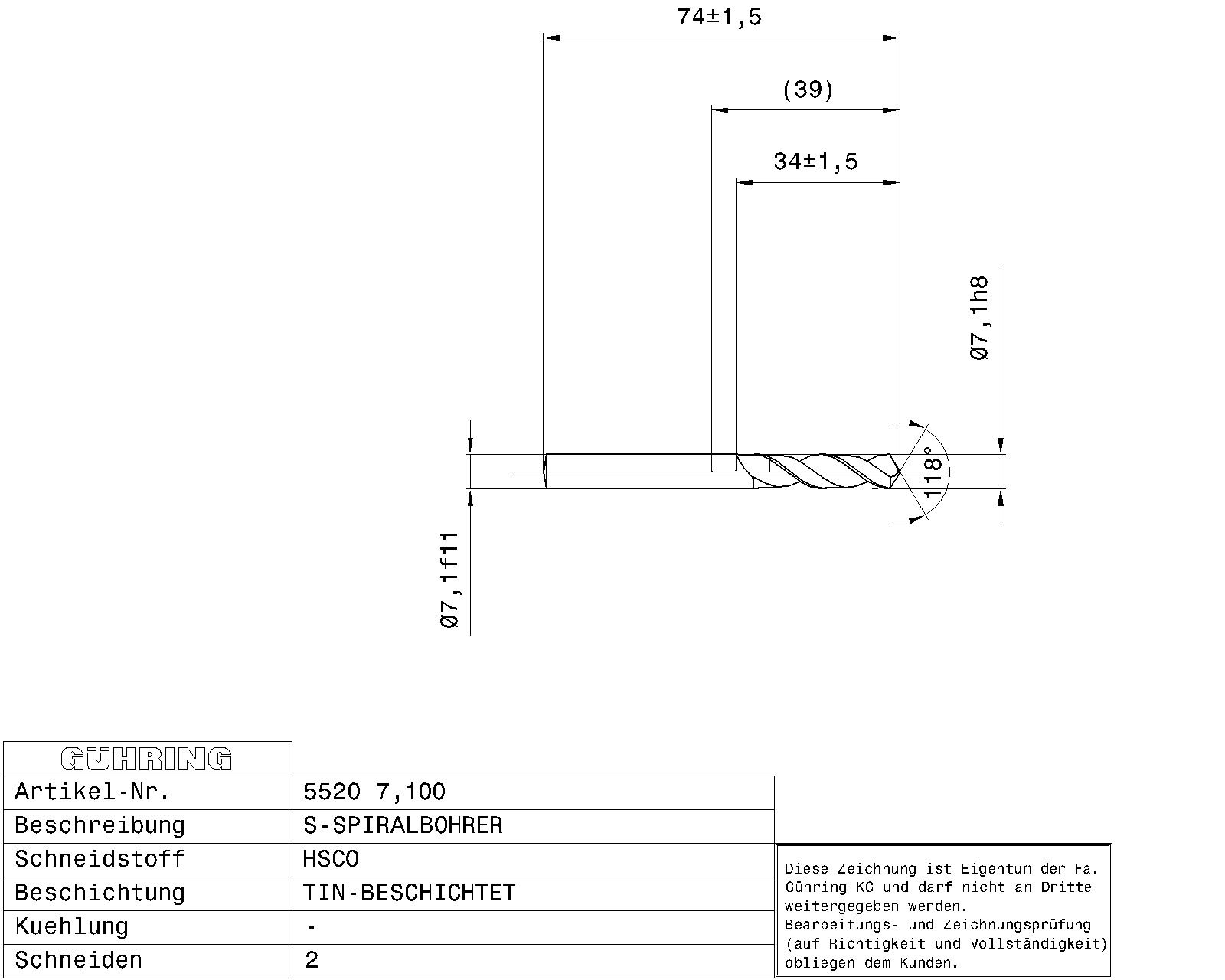

Twist drills extra-short HSCO / Ø 7.100 mm h8 / ~3xD / DIN 1897 / Surface: TiN / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0180 kg
Dimensions
barcode
Additional Information

Point grinding: Facet point grinding
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 1897
Surface: TiN
Discount group: 159
Type: 5520
Cutting direction: Right-hand
Type: GU 500 DZ
Point angle: 118
Material: HSCO
Code no.: 7.100
Weight: 0.018
No of cutting edges: 2
Total length: 74.000
Groove length: 34.000
Usable length: 27.000
Shank Ø: 7.100
Shank length: 40.000
Nominal Ø mm: 7.100
Statistical goods number: 82075060

Brand

Guhring
