Guhring Stub drill HSCO TiN Coated

Product Code: 5520 8,200

$81.29$73.90 Ex. GST

Product Code: 5520 8,200 SKU 5520 8,200 Category
Guhring Stub drill HSCO TiN Coated

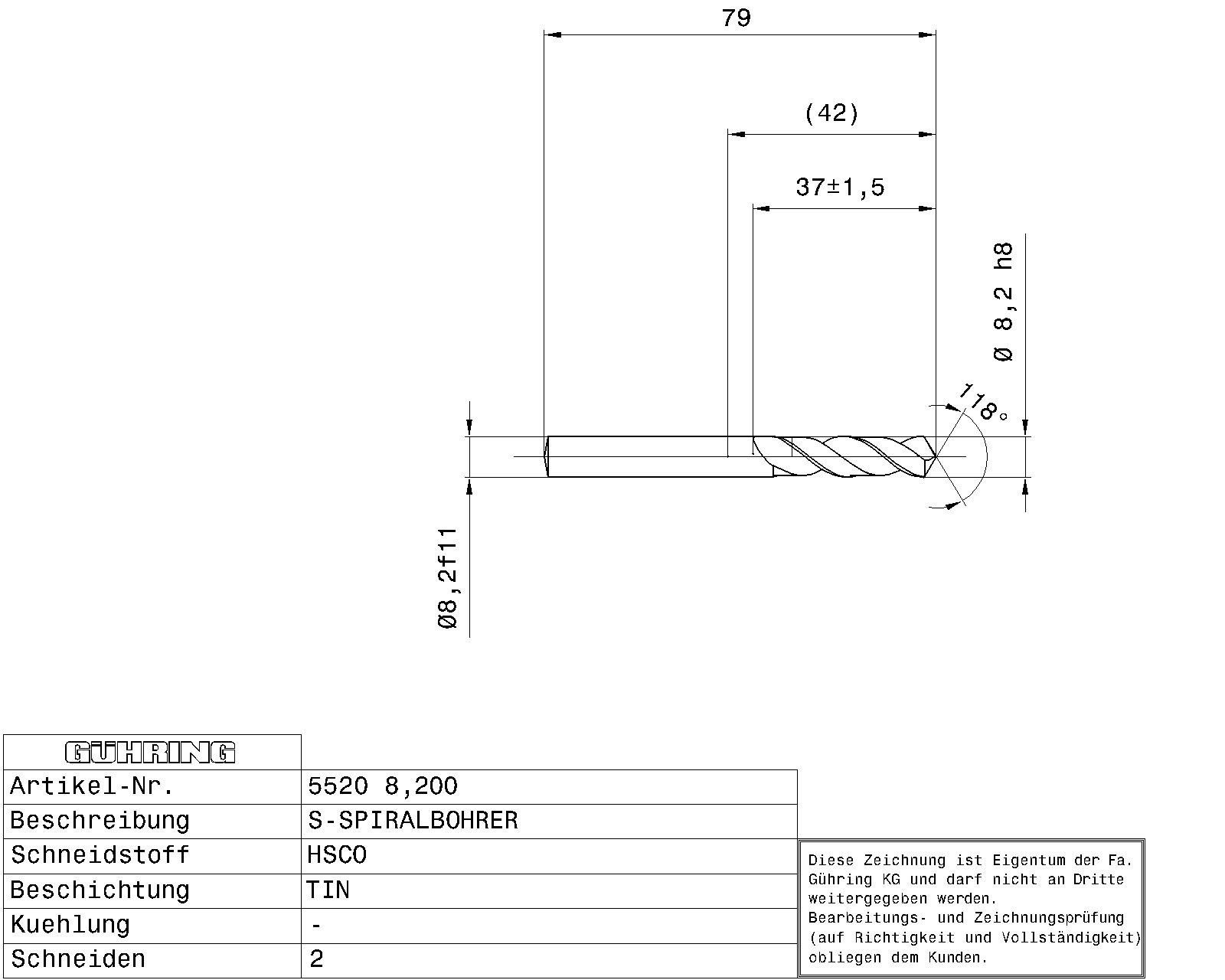

Guhring Stub drill HSCO TiN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills extra-short HSCO / Ø 8.200 mm h8 / ~3xD / DIN 1897 / Surface: TiN / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0260 kg
Dimensions
barcode
Additional Information

Point Grinding: Facet Point Grinding
Connection Code Machine Side: Straight Shank
Ø-Thinning: 1.000
Nominal Ø Tolerance Field: h8
Internal Cooling: Without
Norm: DIN 1897
Surface: TiN
Discount Group: 159
Type: 5520
Cutting Direction: Right-hand
Type: GU 500 DZ
Point Angle: 118
Material: HSCO
Code No.: 8.200
Weight: 0.026
No of Cutting Edges: 2
Total Length: 79.000
Groove Length: 37.000
Usable Length: 29.000
Shank Ø: 8.200
Shank Length: 42.000
Nominal Ø (mm): 8.200
Statistical Goods Number: 82075060

Brand

Guhring
