Guhring Stub drill Solid Carbide

Product Code: 5516 7,000

$83.06$75.51 Ex. GST

Product Code: 5516 7,000 SKU 5516 7,000 Category
Guhring Stub drill Solid Carbide

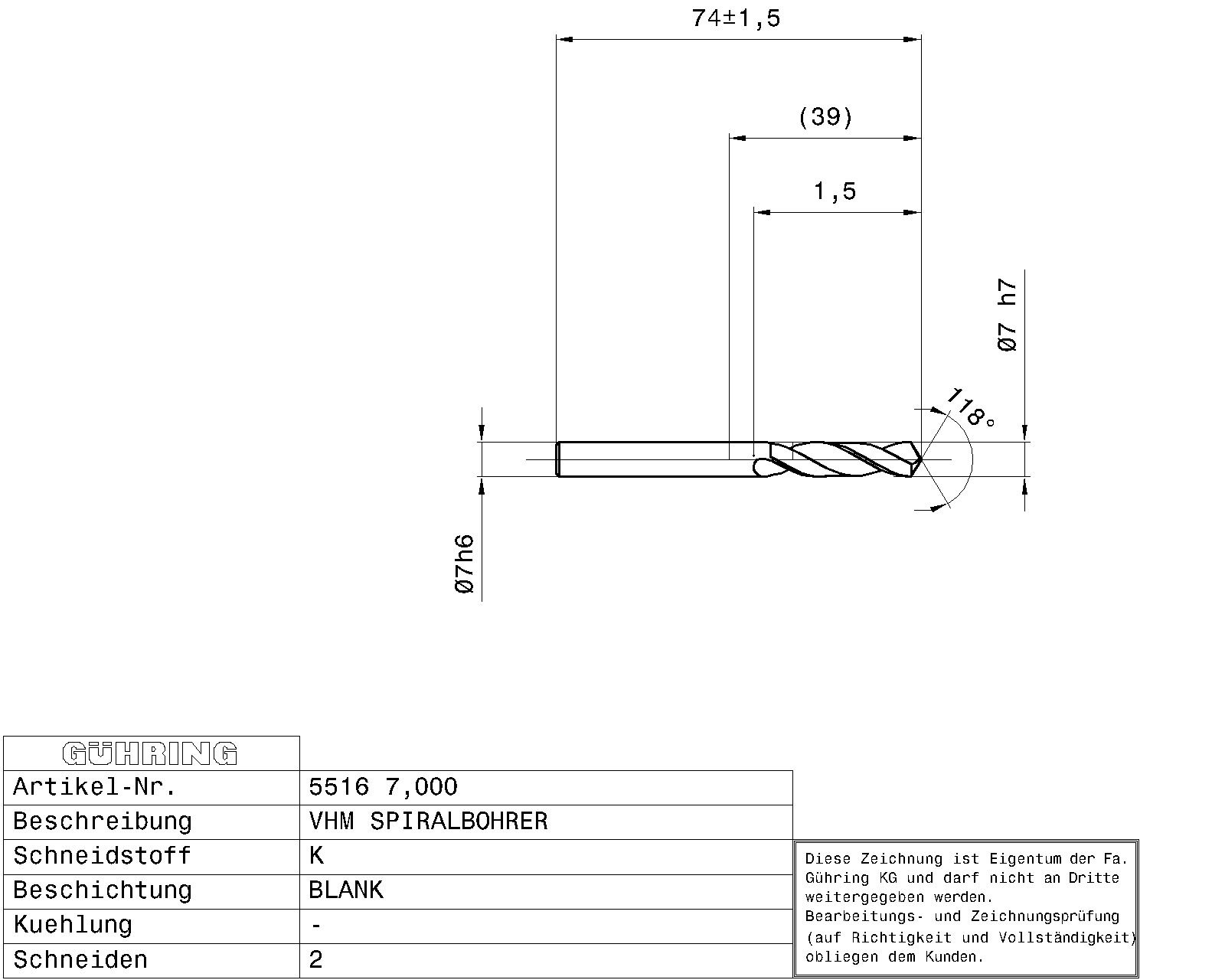

Guhring Stub drill Solid Carbide - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills extra-short Solid carbide / Ø 7.000 mm h7 / DIN 6539 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • grey cast iron • bronze, brass • aluminium and Al alloys • magnesium and magnesium alloys • plastics and fiber reinforced plastics

Additional information

Weight 0.0320 kg
Dimensions
barcode
Additional Information

Point grinding: Facet point grinding
Connection code machine side: Straight shank
Ø-Thinning: 3.000
Nominal Ø tolerance field: h7
Internal cooling: Without
Norm: DIN 6539
Surface: Bright
Discount group: 155
Type: 5516
Cutting direction: Right-hand
Type: N
Point angle: 118
Material: Solid carbide
Code no.: 7.000
Weight: 0.032
No of cutting edges: 2
Total length: 74.000
Groove length: 34.000
Usable length: 26.000
Shank Ø: 7.000
Shank length: 40.000
Nominal Ø mm: 7.000
Statistical goods number: 82075050

Brand

Guhring
