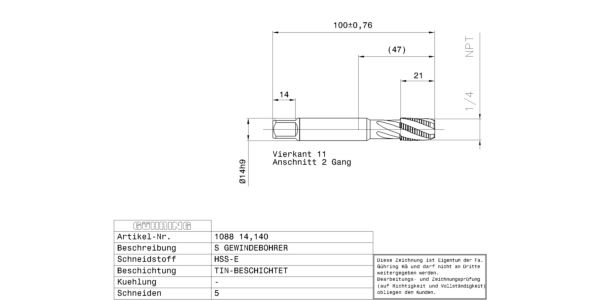

Guhring Taps for NPT threads 1/4 NPT

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: TiN
Discount group: 103
Type: 1088
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: blue ring
Threads: NPT
Hole type: through-, blind hole
Groove: 25° right hand helix
Chamfer lead length: 2-3
Code no.: 14.140
Weight: 0.103
No of cutting edges: 5
Total length: 100.000
Thread length: 21.000
Groove length: 36.000
Usable length: 40.000
Wrench opening 1: 11.000
Neck Ø: 11.600
Core hole Ø: 11.20
Shank Ø: 14.000
Nominal dimension thread: 1/4 NPT
Pitch: 1.411
External Ø: 13.070
Pitch thread/inch: 18.000
Reach length: 47.000
Statistical goods number: 82074010
