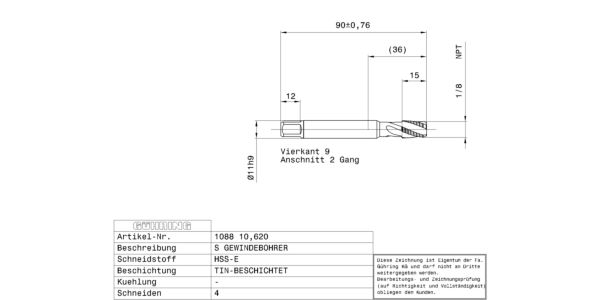

Guhring Taps for NPT threads 1/8 NTP

Connection code machine side: straight shank
Internal cooling: without
Norm: Company std.
Surface: TiN
Discount group: 103
Type: 1088
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: blue ring
Threads: NPT
Hole type: through-, blind hole
Groove: 25° right hand helix
Chamfer lead length: 2-3
Code no.: 10.620
Weight: 0.060
No of cutting edges: 4
Total length: 90.000
Thread length: 15.000
Groove length: 25.000
Usable length: 29.000
Wrench opening 1: 9.000
Neck Ø: 9.000
Core hole Ø: 8.50
Shank Ø: 11.000
Nominal dimension thread: 1/8 NPT
Pitch: 0.941
External Ø: 9.890
Pitch thread/inch: 27.000
Reach length: 36.000
Statistical goods number: 82074010
