Guhring Taps for NPT threads 3/8 NPT

Product Code: 1088 17,570

$314.19$285.63 Ex. GST

Product Code: 1088 17,570 SKU 1088 17,570 Category CUTTING TOOLS (HSS & Carbide)

Guhring Taps for NPT threads 3/8 NPT

Guhring Taps for NPT threads 3/8 NPT - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

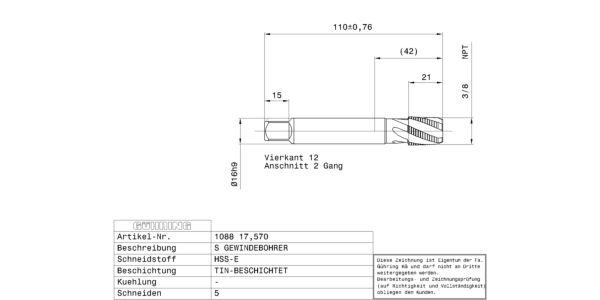

Machine taps for NPT-threads 3/8 NPT / 1.5xD / Company std. / HSS-E / TiN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²

Additional information

Weight	0.1570 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: TiN Discount group: 103 Type: 1088 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: NPT Hole type: through-, blind hole Groove: 25° right hand helix Chamfer lead length: 2-3 Code no.: 17.570 Weight: 0.157 No of cutting edges: 5 Total length: 110.000 Thread length: 21.000 Groove length: 31.000 Usable length: 35.000 Wrench opening 1: 12.000 Neck Ø: 15.000 Core hole Ø: 14.40 Shank Ø: 16.000 Nominal dimension thread: 3/8 NPT Pitch: 1.411 External Ø: 16.490 Pitch thread/inch: 18.000 Reach length: 42.000 Statistical goods number: 82074010

Brand

Guhring
