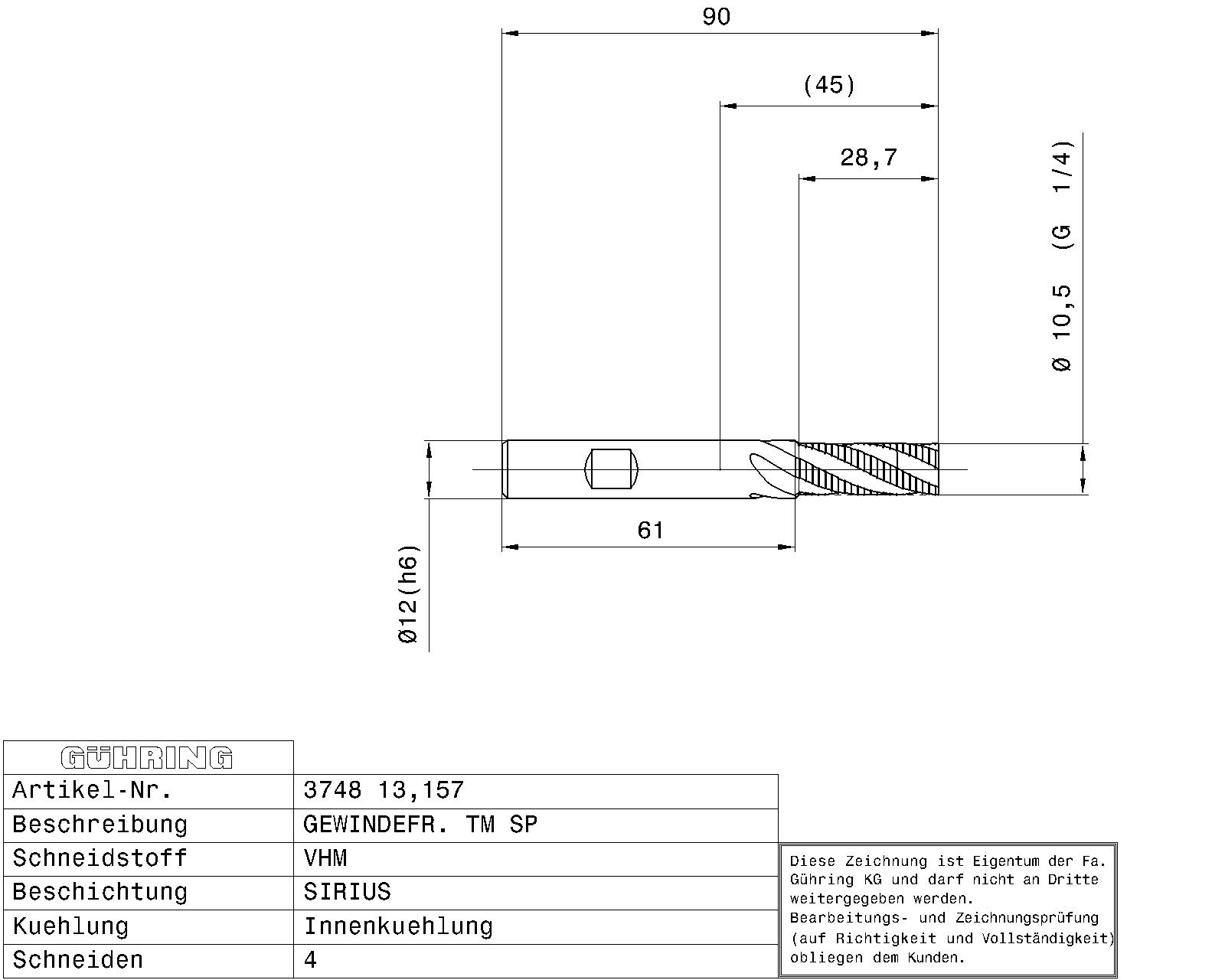

Guhring Thread Milling Cutter Sirius Coating 2 x D BSP G1/4

Connection code machine side: DIN 6535-HB
Internal cooling: with
Norm: Company std.
Surface: Sirius
Discount group: 108
Type: 3748
Cutting direction: right-hand
Type: TM SP
Material: Solid carbide
Additional information: Inner- and external thread
Threads: BSP
Hole type: through-, blind hole
(Variety): 55
Code no.: 13.157
Weight: 0.070
No of cutting edges: 4
Total length: 90.000
Thread length: 28.700
Groove length: 39.000
Core hole Ø: 11.80
Shank Ø: 12.000
Nominal dimension thread: G1/4
External Ø: 10.500
Shank length: 60.500
Pitch thread/inch: 19.000
Holder, machine side: ~DIN 6535-HB
Reach length: 45.000
Statistical goods number: 82074010
Radiuskompensation: 5.190
