Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/2

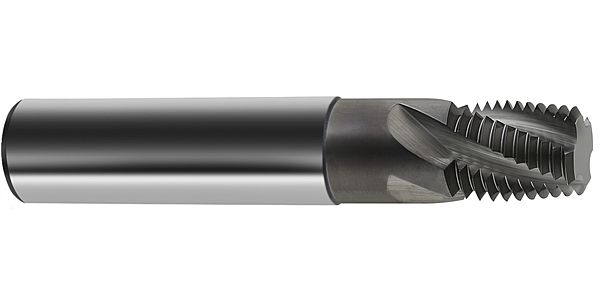

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/2

Product Code: 4130 21,900

$873.80$794.36 Ex. GST

Product Code: 4130 21,900 SKU 4130 21,900 Category CUTTING TOOLS (HSS & Carbide)

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/2

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/2 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutters for NPT-threads / 2xD / Company std. / Solid carbide / Sirius / Type: TM SP / Cutting direction: right-hand /
Execution: without chamfer

Additional information

Weight	0.2360 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: Sirius Discount group: 108 Type: 4130 Cutting direction: right-hand Type: TM SP Material: Solid carbide Additional information: Inner- and external thread Threads: NPT Code no.: 21.900 Weight: 0.236 No of cutting edges: 4 Total length: 88.900 Thread length: 19.000 Groove length: 34.000 Core hole Ø: 17.90 Shank Ø: 15.875 External Ø: 14.500 Shank length: 69.200 Pitch thread/inch: 14.000 Reach length: 40.900 Statistical goods number: 82074010 Radiuskompensation: 7.190

Brand

Guhring
