Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/4

Product Code: 4130 14,140

$627.44$570.40 Ex. GST

Product Code: 4130 14,140 SKU 4130 14,140 Category CUTTING TOOLS (HSS & Carbide)

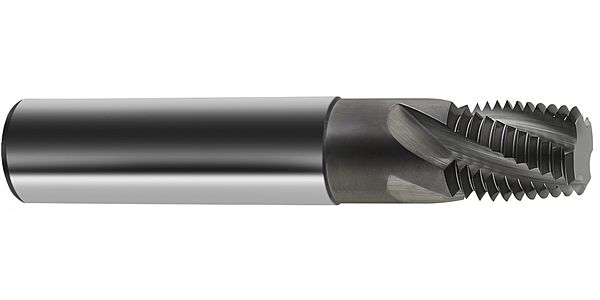

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/4

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/4 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutters for NPT-threads / 2xD / Company std. / Solid carbide / Sirius / Type: TM SP / Cutting direction: right-hand /
Execution: without chamfer

Additional information

Weight	0.1370 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: Sirius Discount group: 108 Type: 4130 Cutting direction: right-hand Type: TM SP Material: Solid carbide Additional information: Inner- and external thread Threads: NPT Code no.: 14.140 Weight: 0.137 No of cutting edges: 3 Total length: 82.600 Thread length: 14.800 Groove length: 25.000 Core hole Ø: 11.10 Shank Ø: 12.700 External Ø: 9.930 Shank length: 66.400 Pitch thread/inch: 18.000 Reach length: 37.600 Statistical goods number: 82074010 Radiuskompensation: 4.910

Brand

Guhring
