Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/8

Product Code: 4130 10,620

$421.89$383.54 Ex. GST

Product Code: 4130 10,620 SKU 4130 10,620 Category CUTTING TOOLS (HSS & Carbide)

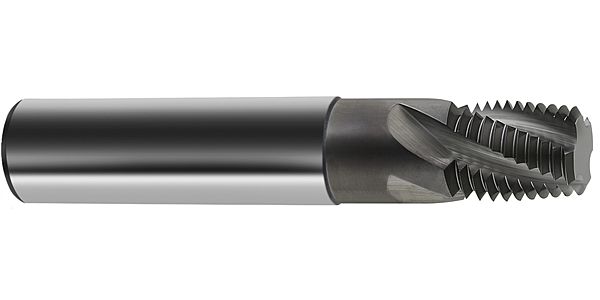

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/8

Guhring Thread Milling Cutter Sirius Coating 2 x D NPT 1/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutters for NPT-threads / 2xD / Company std. / Solid carbide / Sirius / Type: TM SP / Cutting direction: right-hand /
Execution: without chamfer

Additional information

Weight	0.0400 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: Sirius Discount group: 108 Type: 4130 Cutting direction: right-hand Type: TM SP Material: Solid carbide Additional information: Inner- and external thread Threads: NPT Code no.: 10.620 Weight: 0.040 No of cutting edges: 3 Total length: 57.200 Thread length: 9.900 Groove length: 17.000 Core hole Ø: 8.40 Shank Ø: 7.938 External Ø: 7.320 Shank length: 46.900 Pitch thread/inch: 27.000 Reach length: 21.200 Statistical goods number: 82074010 Radiuskompensation: 3.630

Brand

Guhring
