Guhring UNC Gun Taps HSS-E Blue band Sirius coated 1/2

Product Code: 4642 12,700

$223.42$203.11 Ex. GST

Product Code: 4642 12,700 SKU 4642 12,700 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Gun Taps HSS-E Blue band Sirius coated 1/2

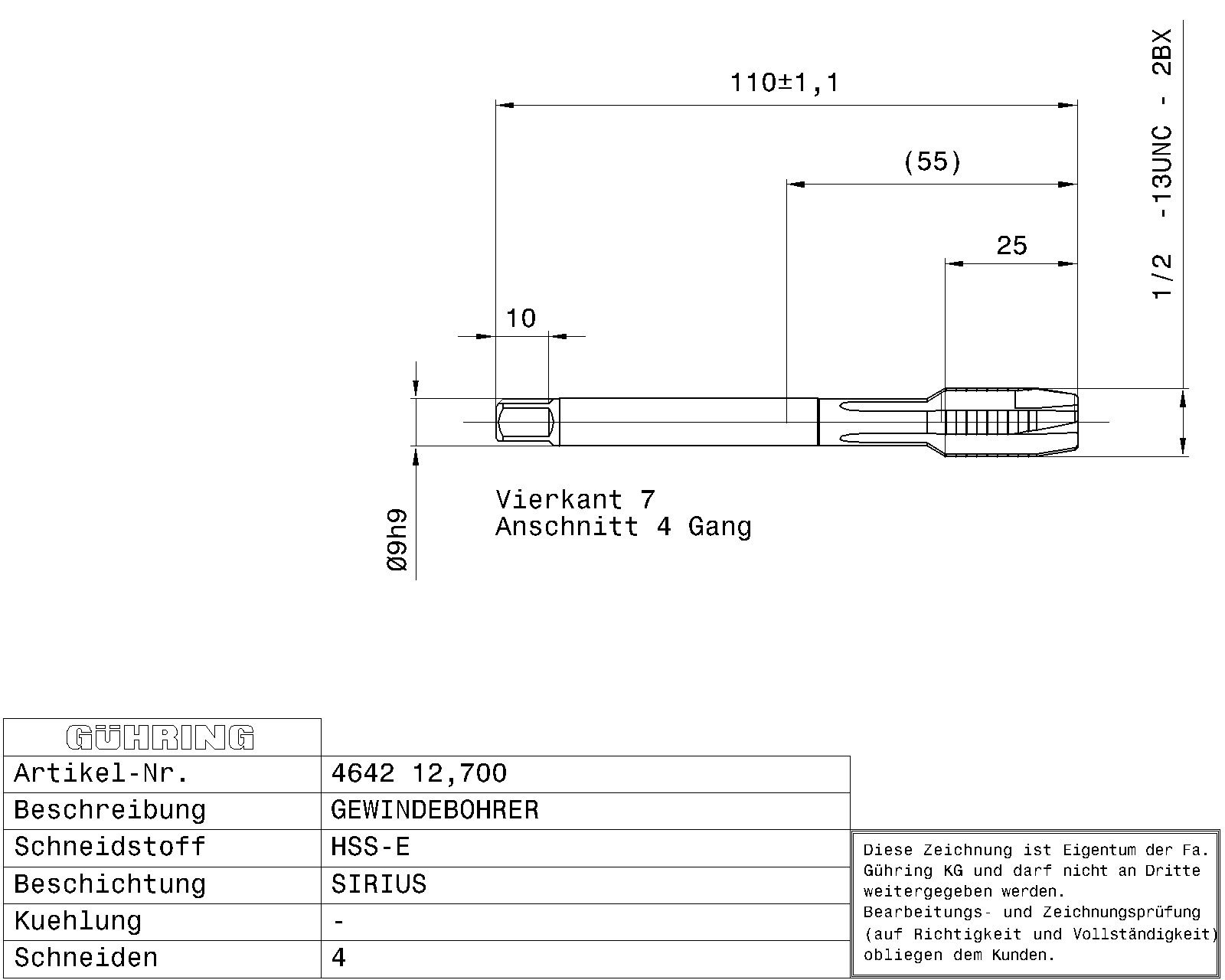

Guhring UNC Gun Taps HSS-E Blue band Sirius coated 1/2 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 1/2 – 13 / 2BX / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0630 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 376 Surface: Sirius Discount group: 103 Type: 4642 Cutting direction: right-hand Type VA: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: UNC Tolerance class thread: 2BX Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 12.700 Weight: 0.063 No of cutting edges: 4 Total length: 110.000 Thread length: 25.000 Groove length: 45.000 Usable length: 49.000 Norm 2: DIN 2184-1 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 10.80 Shank Ø: 9.000 Nominal dimension thread: 1/2 – 13 External Ø: 12.780 Pitch thread/inch: 13.000 Reach length: 55.000 Statistical goods number: 82074010

Brand

Guhring
