Guhring UNC Gun Taps HSS-E Blue band Sirius coated No 12-24

Product Code: 4642 5,486

$140.31$127.55 Ex. GST

Product Code: 4642 5,486 SKU 4642 5,486 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Gun Taps HSS-E Blue band Sirius coated No 12-24

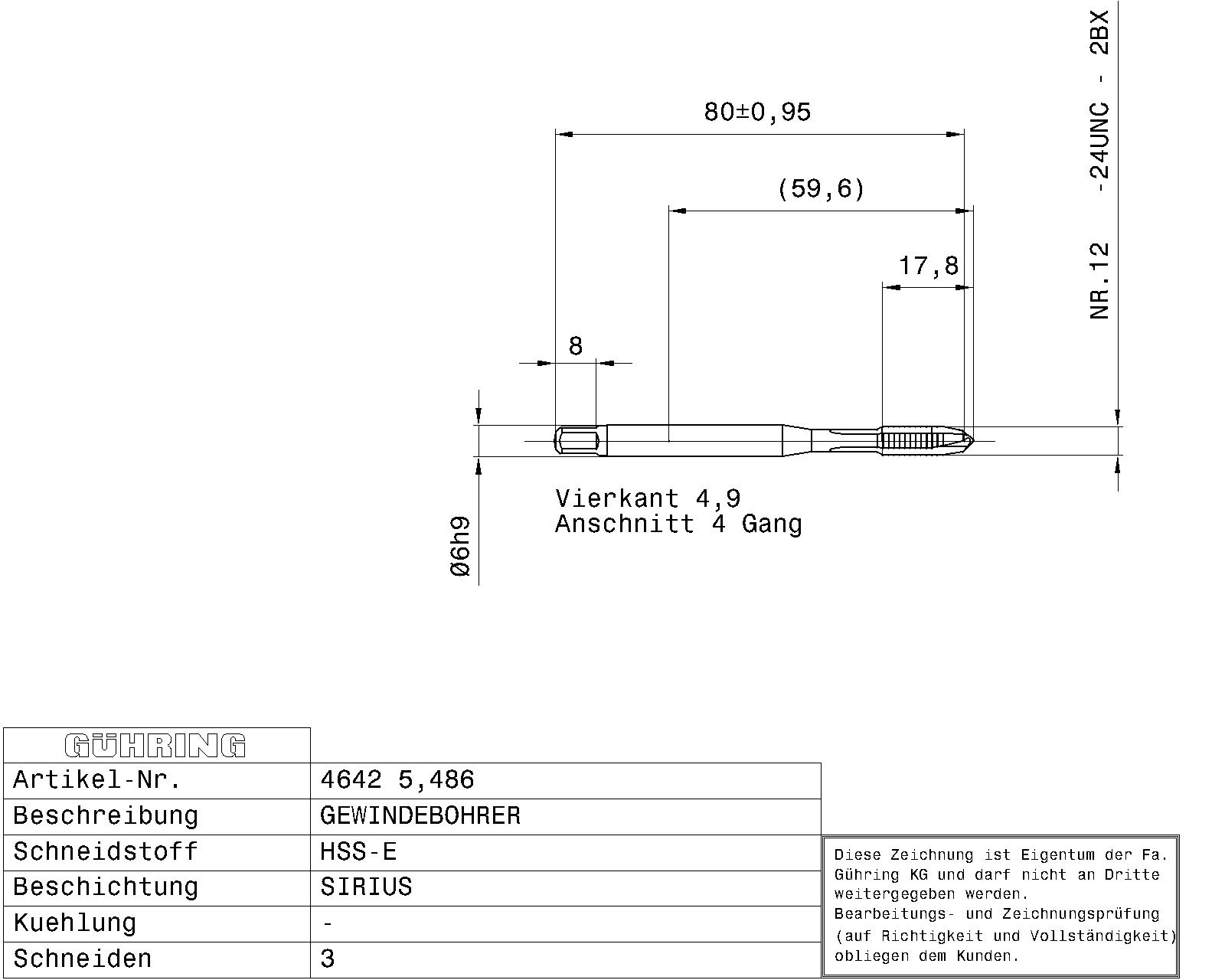

Guhring UNC Gun Taps HSS-E Blue band Sirius coated No 12-24 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 12 – 24 / 2BX / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0170 kg
Dimensions
barcode
Additional Information	Connection code (machine side): Straight shank Internal cooling: Without Norm: ~DIN 371 Surface: Sirius Discount group: 103 Type: 4642 Cutting direction: Right-hand Type VA: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Blue ring Threads: UNC Tolerance class thread: 2BX Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5 – 5.5 Code no.: 5.486 Weight: 0.017 No of cutting edges: 3 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 4.400 Core hole Ø: 4.50 Shank Ø: 6.000 Nominal dimension thread: 12 – 24 External Ø: 5.560 Pitch thread/inch: 24.000 Reach length: 60.000 Statistical goods number: 82074010

Brand

Guhring
