Guhring UNC Gun Taps HSS-E Gold Band 1/4 -20

Product Code: 5725 6,350

$66.97$60.88 Ex. GST

Product Code: 5725 6,350 SKU 5725 6,350 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Gun Taps HSS-E Gold Band 1/4 -20

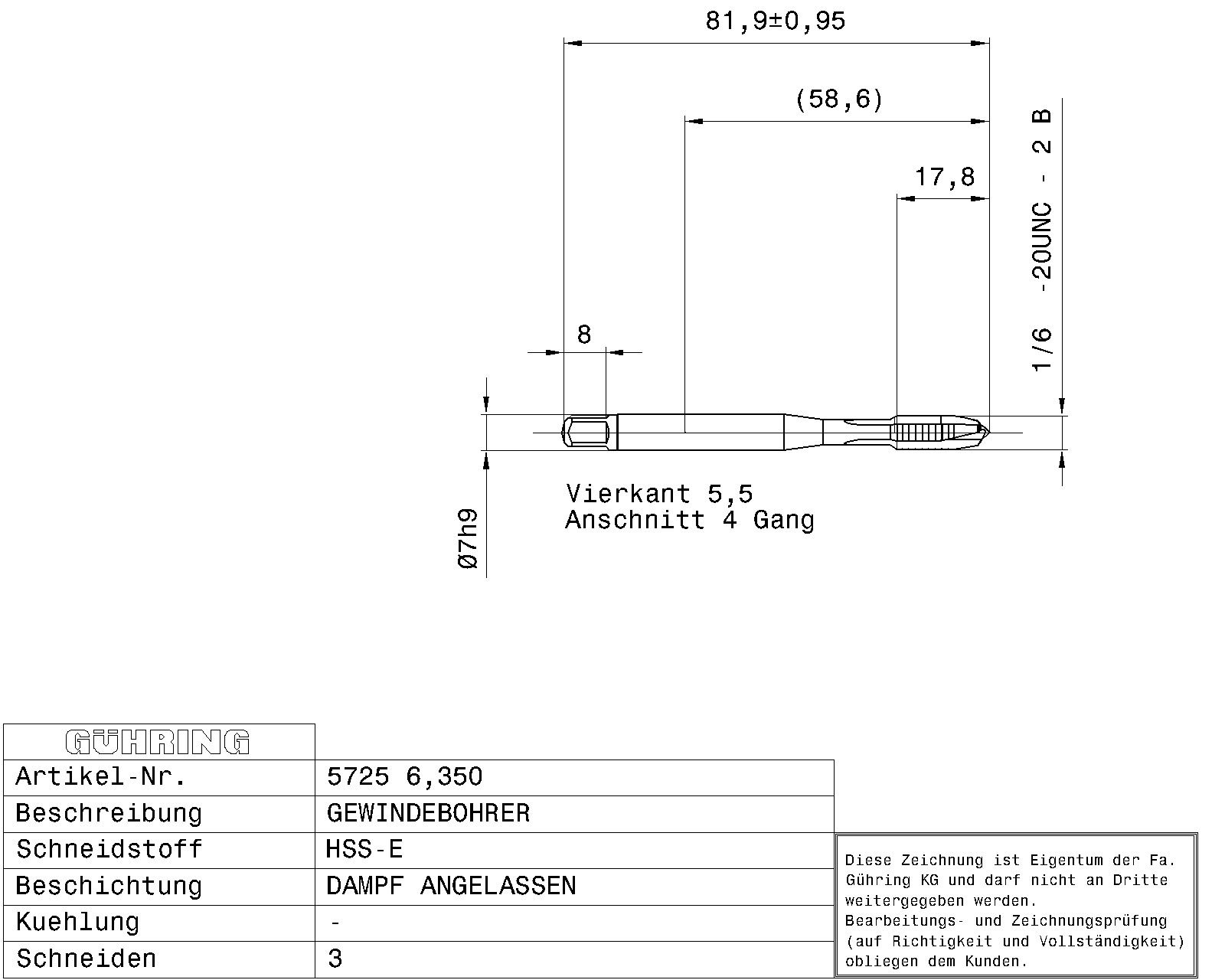

Guhring UNC Gun Taps HSS-E Gold Band 1/4 -20 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 1/4 – 20 / 2B / ~DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: N / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0220 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 371 Surface: Steam tempered Discount group: 203 Type: 5725 Cutting direction: Right-hand Type (N): N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Gold ring Threads: UNC Tolerance class thread: 2B Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 6.350 Weight: 0.022 No of cutting edges: 3 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Neck Ø: 4.900 Core hole Ø: 5.10 Shank Ø: 7.000 Nominal dimension thread: 1/4 – 20 Pitch: 1.270 External Ø: 6.440 Pitch thread/inch: 20.000 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
