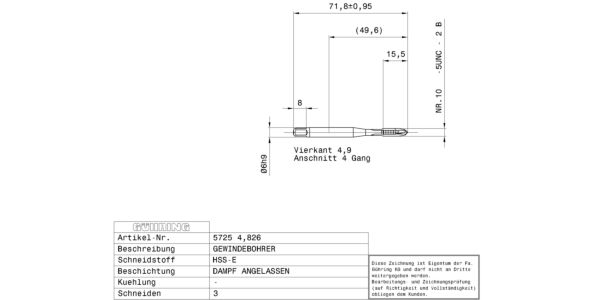

Guhring UNC Gun Taps HSS-E Gold Band NR.10 -24

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 371
Surface: Steam tempered
Discount group: 203
Type: 5725
Cutting direction: Right-hand
Type (N): N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: Gold ring
Threads: UNC
Tolerance class thread: 2B
Hole type: Through hole
Groove: Straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 4.826
Weight: 0.066
No of cutting edges: 3
Total length: 70.000
Thread length: 14.000
Groove length: 21.000
Usable length: 25.000
Norm 2: DIN 2184-1
Wrench opening 1: 4.900
Neck Ø: 3.800
Core hole Ø: 3.90
Shank Ø: 6.000
Nominal dimension thread: 10 – 24
Pitch: 1.058
External Ø: 4.900
Pitch thread/inch: 24.000
Reach length: 50.000
Statistical goods number: 82074010
