Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 3/4

Product Code: 391 19,050

$423.91$385.37 Ex. GST

Product Code: 391 19,050 SKU 391 19,050 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 3/4

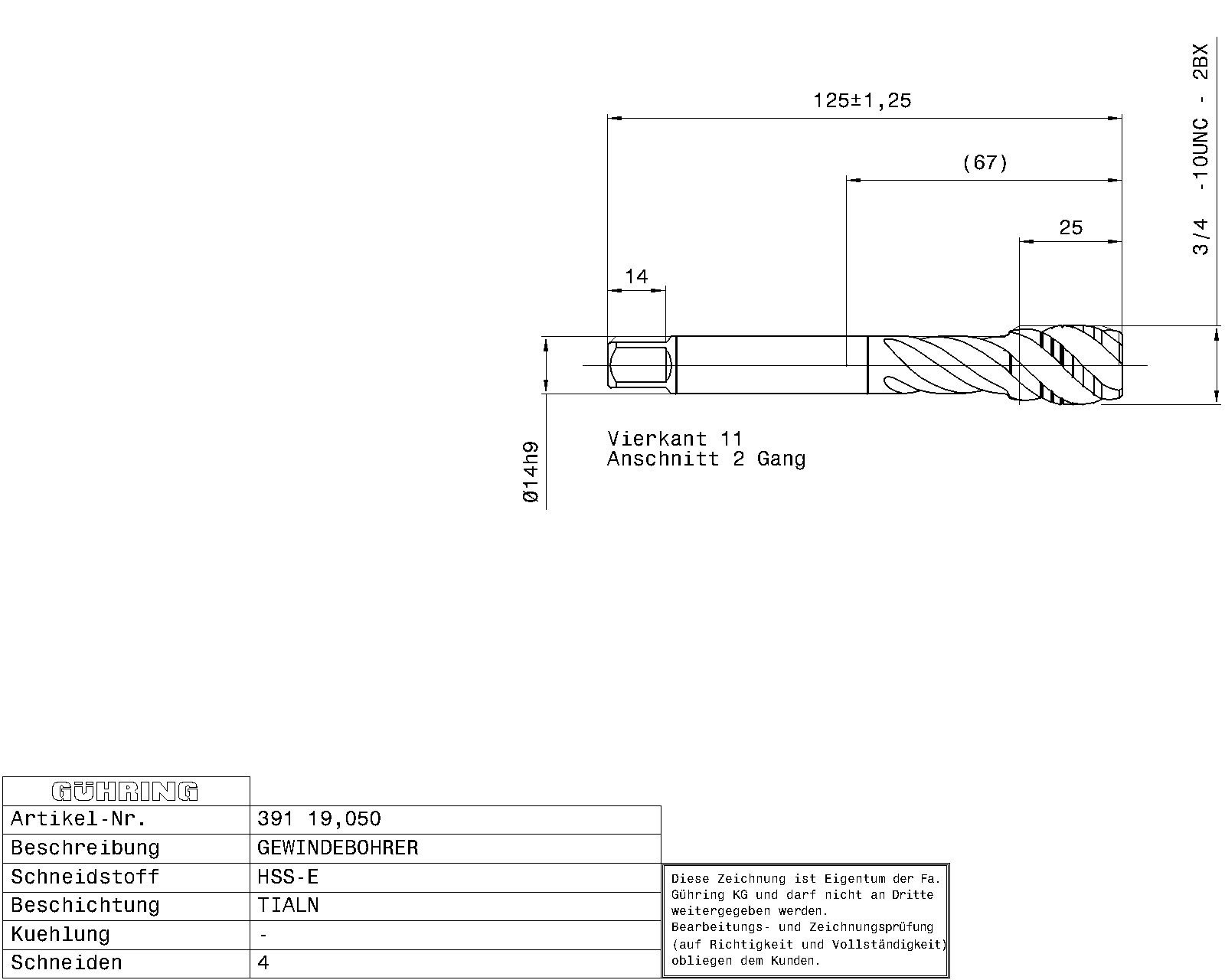

Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 3/4 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 3/4 – 10 / 2BX / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.1440 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 376 Surface: TiAlN Discount Group: 103 Type: 391 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: UNC Tolerance Class Thread: 2BX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 19.050 Weight: 0.144 No. of Cutting Edges: 4 Total Length: 125.000 Thread Length: 25.000 Groove Length: 58.000 Usable Length: 62.000 Norm 2: DIN 2184-1 Wrench Opening 1: 11.000 Neck Ø: 13.800 Core Hole Ø: 16.50 Shank Ø: 14.000 Nominal Dimension Thread: 3/4 – 10 External Ø: 19.150 Pitch Thread/Inch: 10.000 Reach Length: 67.000 Statistical Goods Number: 82074010

Brand

Guhring
