Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 5/16

Product Code: 391 7,938

$152.43$138.57 Ex. GST

Product Code: 391 7,938 SKU 391 7,938 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 5/16

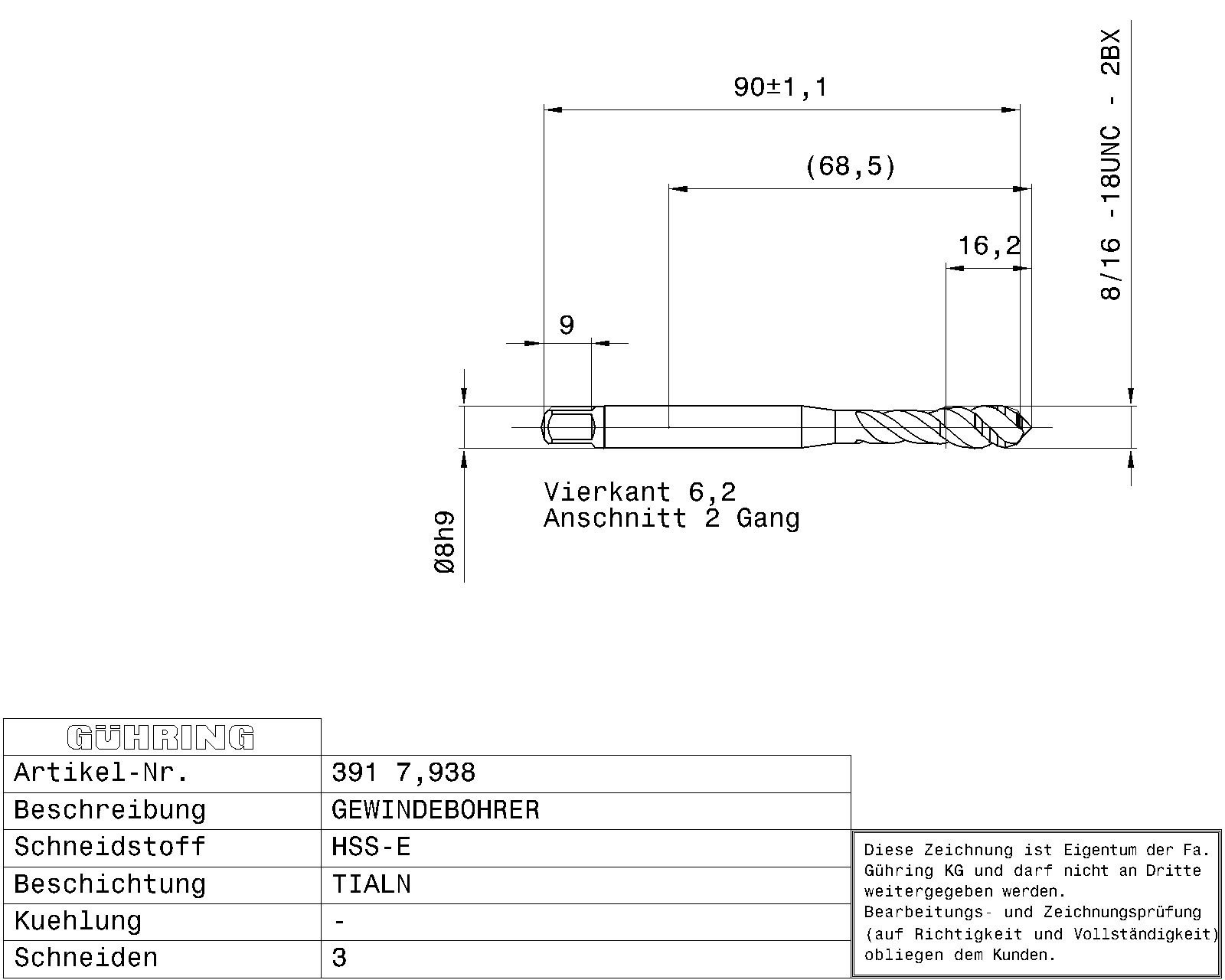

Guhring UNC Spiral Taps HSS-E Blue Band TiAlN Coated 5/16 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 5/16 – 18 / 2BX / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0330 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 371 Surface: TiAlN Discount Group: 103 Type: 391 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: UNC Tolerance Class Thread: 2BX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 7.938 Weight: 0.033 No. of Cutting Edges: 3 Total Length: 90.000 Thread Length: 14.000 Groove Length: 31.000 Usable Length: 35.000 Norm 2: DIN 2184-1 Wrench Opening 1: 6.200 Neck Ø: 6.200 Core Hole Ø: 6.60 Shank Ø: 8.000 Nominal Dimension Thread: 5/16 – 18 External Ø: 8.000 Pitch Thread/Inch: 18.000 Reach Length: 69.000 Statistical Goods Number: 82074010

Brand

Guhring
