Guhring UNC Spiral Taps HSS-E Gold Band 1/2 -13 UNC

Product Code: 5726 12,700

$109.91$99.92 Ex. GST

Product Code: 5726 12,700 SKU 5726 12,700 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Gold Band 1/2 -13 UNC

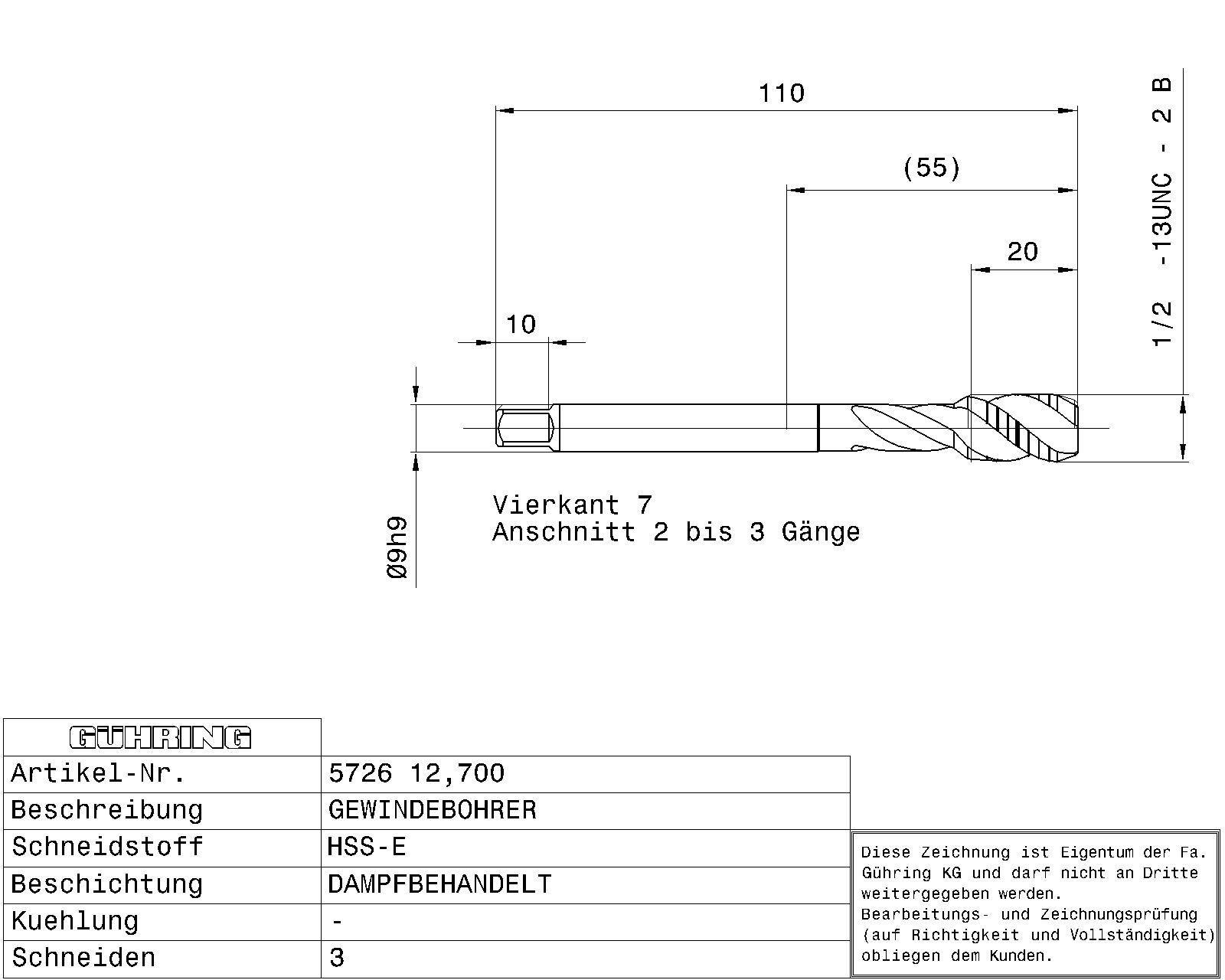

Guhring UNC Spiral Taps HSS-E Gold Band 1/2 -13 UNC - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 1/2 – 13 / 2B / ~DIN 376 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0560 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 376 Surface: steam tempered Discount group: 203 Type: 5726, N R40 Cutting direction: right-hand Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNC Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 12.700 Weight: 0.056 No of cutting edges: 3 Total length: 110.000 Thread length: 20.000 Groove length: 45.000 Usable length: 49.000 Norm 2: DIN 2184-1 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 10.80 Shank Ø: 9.000 Nominal dimension thread: 1/2 – 13 Pitch: 1.954 External Ø: 12.780 Pitch thread/inch: 13.000 Reach length: 55.000 Statistical goods number: 82074010

Brand

Guhring
