Guhring UNC Spiral Taps HSS-E Gold Band 3/4 -10

Product Code: 5726 19,050

$190.38$173.07 Ex. GST

Product Code: 5726 19,050 SKU 5726 19,050 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Gold Band 3/4 -10

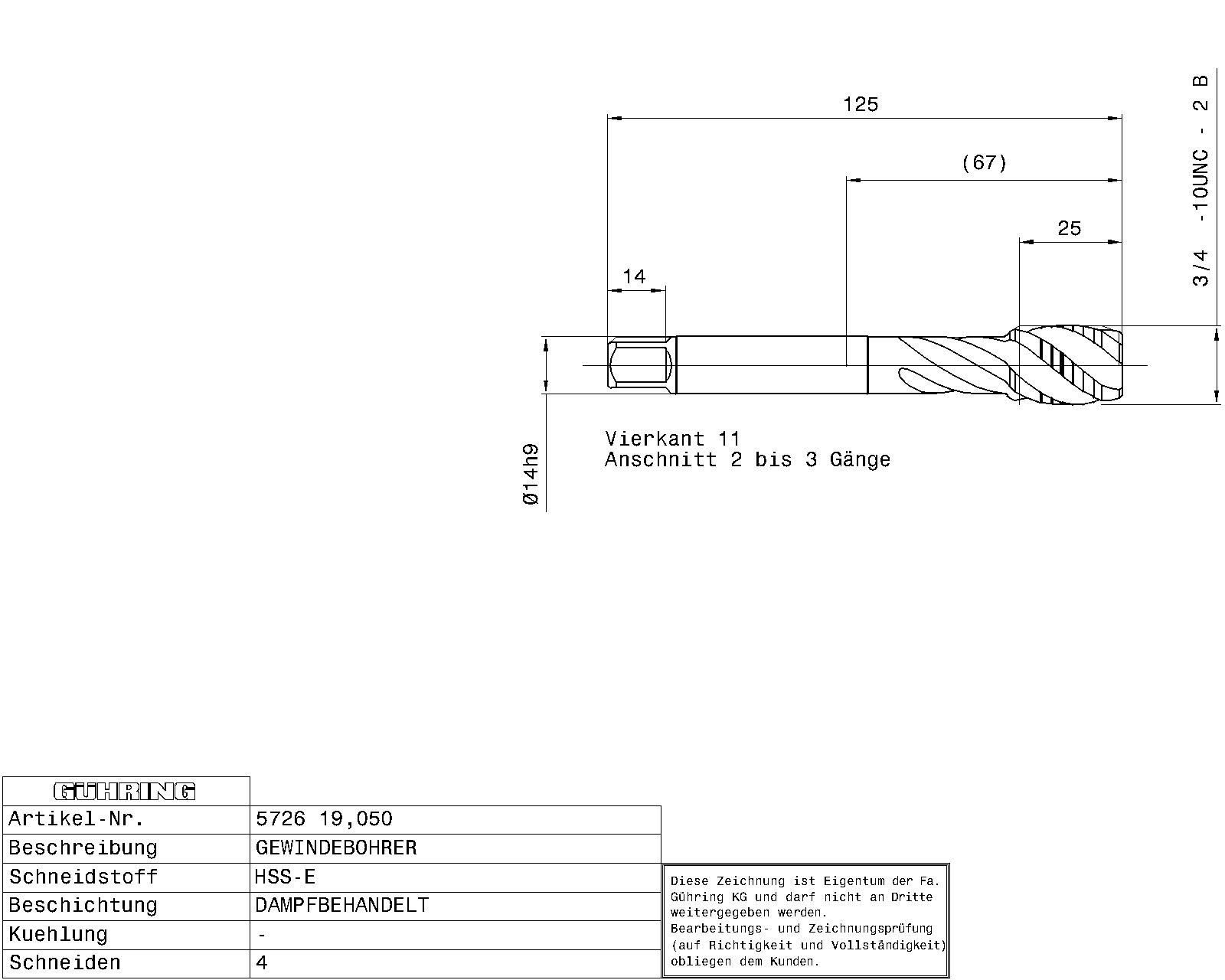

Guhring UNC Spiral Taps HSS-E Gold Band 3/4 -10 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 3/4 – 10 / 2B / ~DIN 376 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.1420 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 376 Surface: steam tempered Discount group: 203 Type: 5726, N R40 Cutting direction: right-hand Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNC Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 19.050 Weight: 0.142 No of cutting edges: 4 Total length: 125.000 Thread length: 25.000 Groove length: 58.000 Usable length: 62.000 Norm 2: DIN 2184-1 Wrench opening 1: 11.000 Neck Ø: 13.800 Core hole Ø: 16.50 Shank Ø: 14.000 Nominal dimension thread: 3/4 – 10 Pitch: 2.540 External Ø: 19.150 Pitch thread/inch: 10.000 Reach length: 67.000 Statistical goods number: 82074010

Brand

Guhring
