Guhring UNC Spiral Taps HSS-E Gold Band 3/8 -16

Product Code: 5726 9,525

$75.50$68.64 Ex. GST

Product Code: 5726 9,525 SKU 5726 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Gold Band 3/8 -16

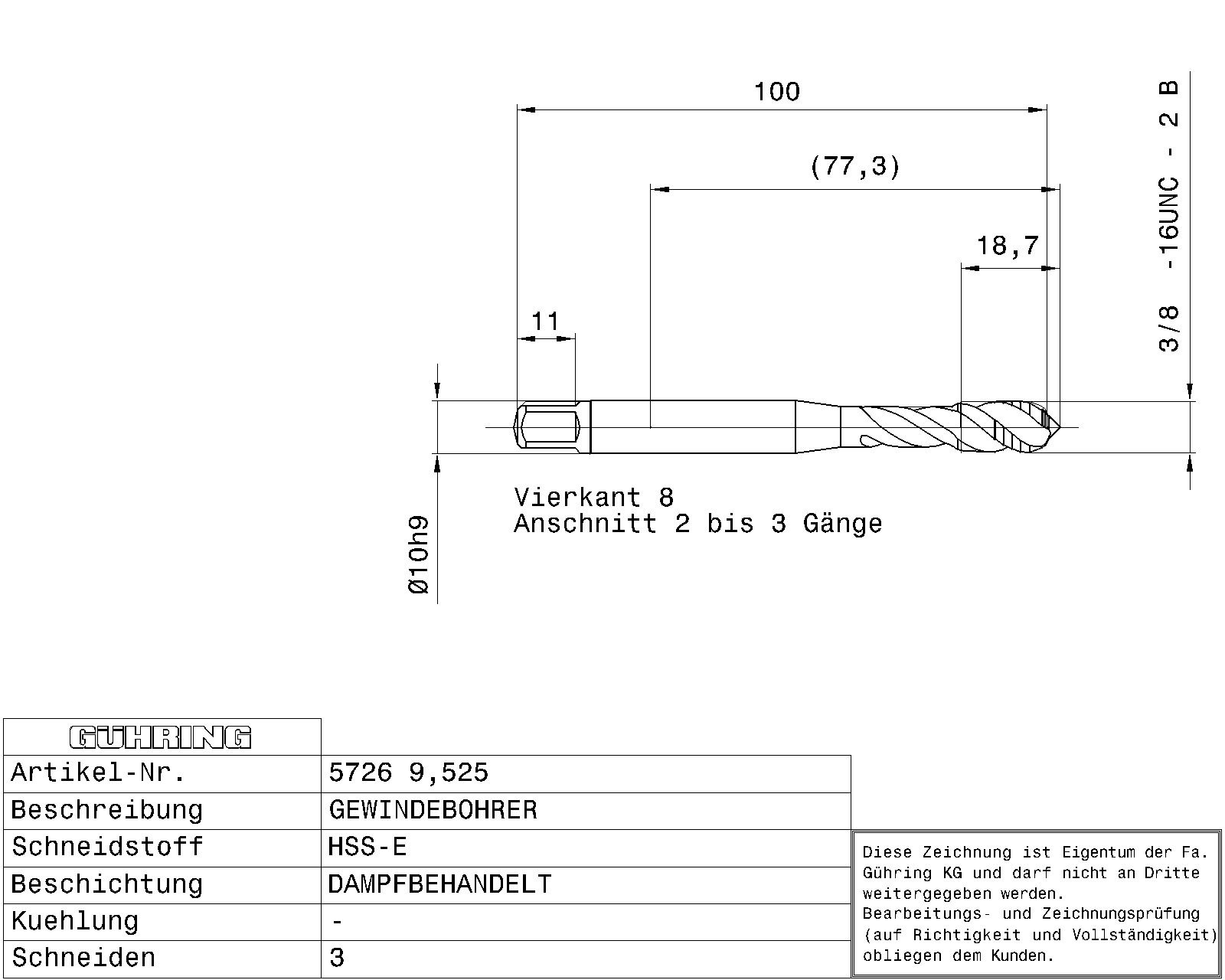

Guhring UNC Spiral Taps HSS-E Gold Band 3/8 -16 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 3/8 – 16 / 2B / ~DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0510 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 371 Surface: steam tempered Discount group: 203 Type: 5726, N R40 Cutting direction: right-hand Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNC Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.051 No of cutting edges: 3 Total length: 100.000 Thread length: 16.000 Groove length: 35.000 Usable length: 39.000 Norm 2: DIN 2184-1 Wrench opening 1: 8.000 Neck Ø: 7.600 Core hole Ø: 8.00 Shank Ø: 10.000 Nominal dimension thread: 3/8 – 16 Pitch: 1.587 External Ø: 9.610 Pitch thread/inch: 16.000 Reach length: 78.000 Statistical goods number: 82074010

Brand

Guhring
