Guhring UNC Spiral Taps HSS-E Gold Band NR.4 -40

Product Code: 5726 2,845

$72.23$65.66 Ex. GST

Product Code: 5726 2,845 SKU 5726 2,845 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNC Spiral Taps HSS-E Gold Band NR.4 -40

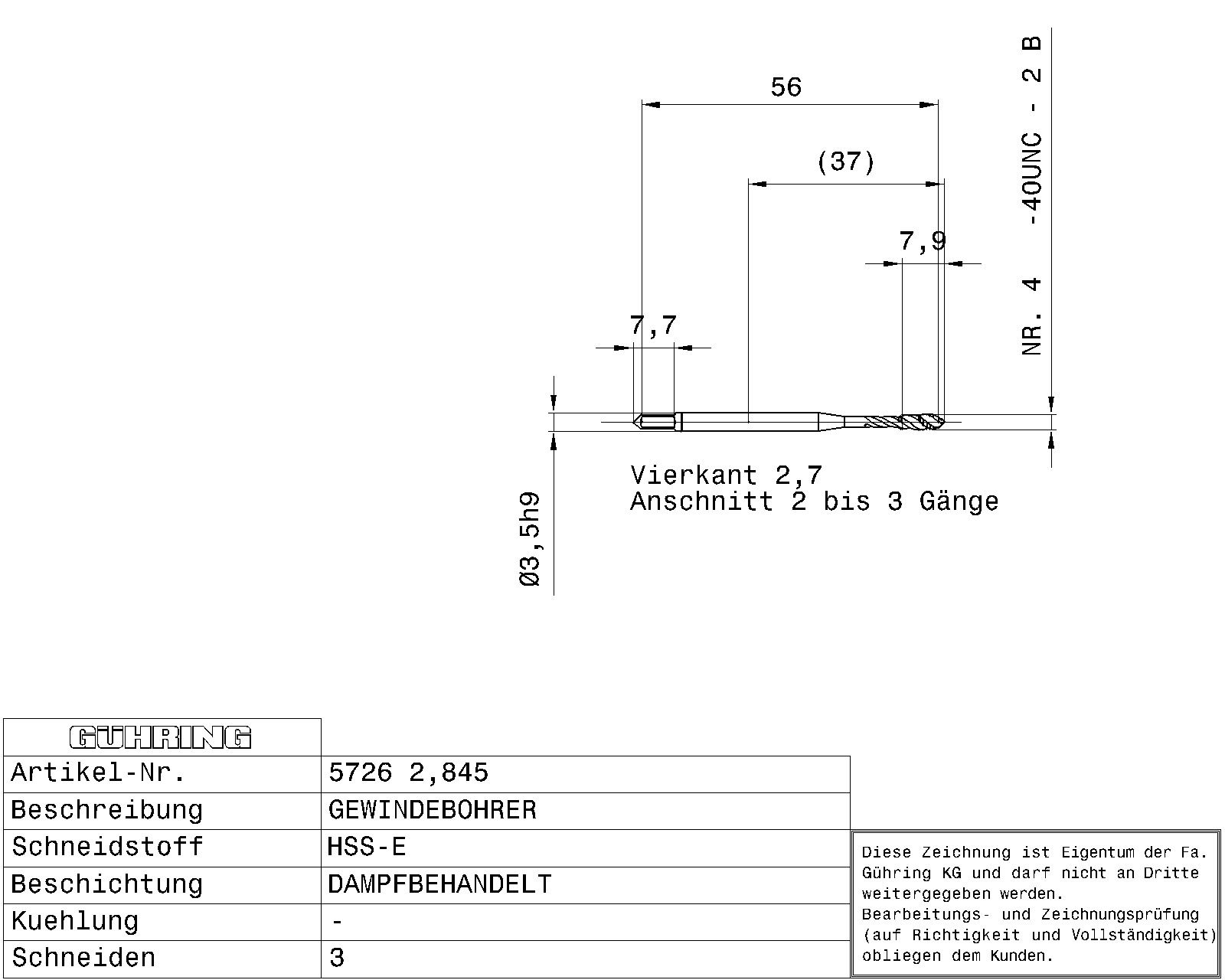

Guhring UNC Spiral Taps HSS-E Gold Band NR.4 -40 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 4 – 40 / 2B / ~DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0050 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 371 Surface: Steam tempered Discount group: 203 Type: 5726 Cutting direction: Right-hand Type (N R40): N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: Gold ring Threads: UNC Tolerance class thread: 2B Hole type: Blind hole Groove: 40° right-hand helix Chamfer lead length: 2-3 Code no.: 2.845 Weight: 0.005 No of cutting edges: 3 Total length: 56.000 Thread length: 7.000 Groove length: 14.000 Usable length: 18.000 Norm 2: DIN 2184-1 Wrench opening 1: 2.700 Neck Ø: 2.100 Core hole Ø: 2.35 Shank Ø: 3.500 Nominal dimension thread: 4 – 40 Pitch: 0.635 External Ø: 2.890 Pitch thread/inch: 40.000 Reach length: 37.000 Statistical goods number: 82074010

Brand

Guhring
