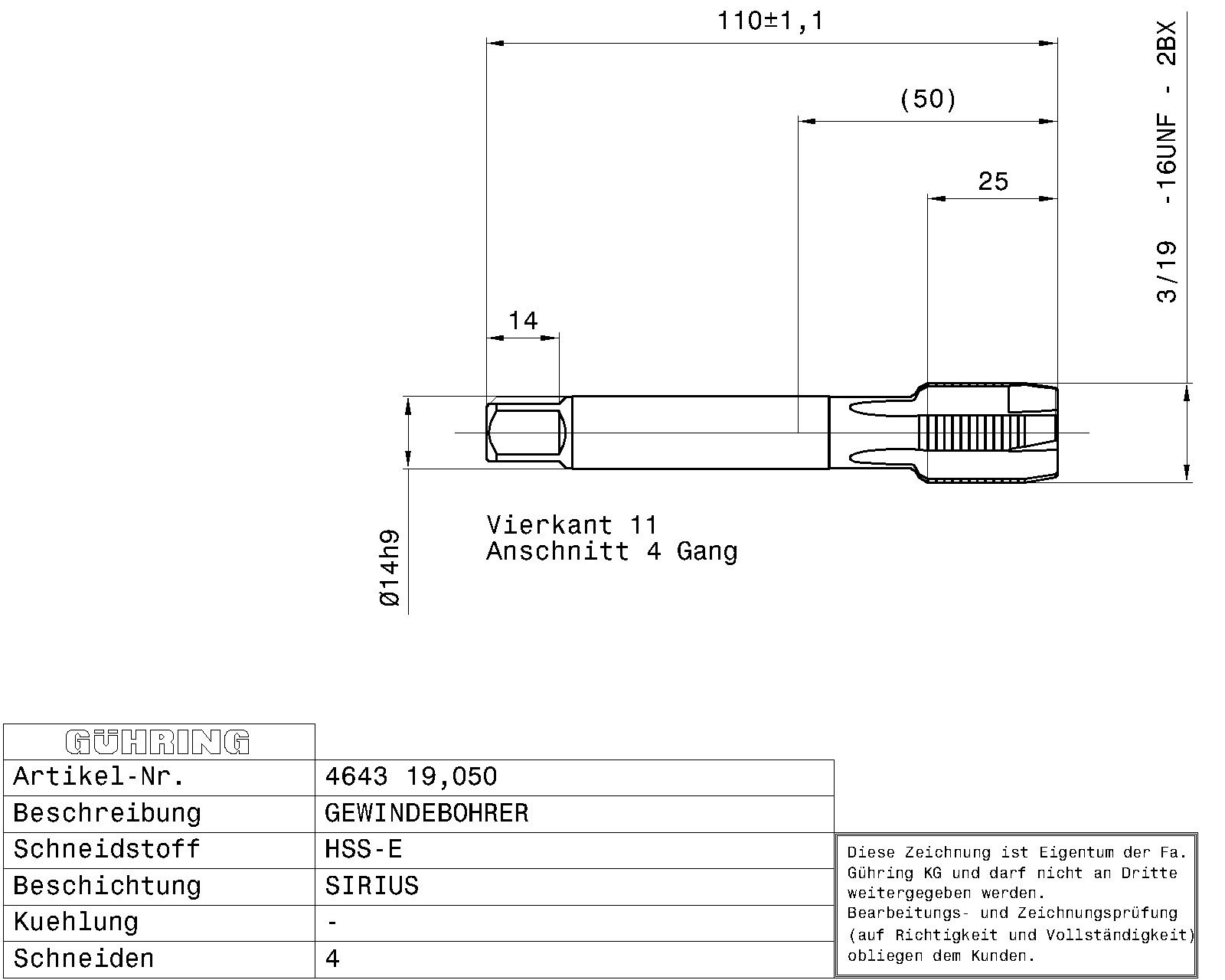

Guhring UNF Gun Taps HSS-E Blue band Sirius coated 3/4

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 374
Surface: Sirius
Discount group: 103
Type: 4643
Cutting direction: right-hand
Type: VA
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: blue ring
Threads: UNF
Tolerance class thread: 2BX
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 19.050
Weight: 0.139
No of cutting edges: 4
Total length: 110.000
Thread length: 25.000
Groove length: 40.000
Usable length: 44.000
Norm 2: DIN 2184-1
Wrench opening 1: 11.000
Neck Ø: 13.800
Core hole Ø: 17.50
Shank Ø: 14.000
Nominal dimension thread: 3/4 – 16
External Ø: 19.150
Pitch thread/inch: 16.000
Reach length: 50.000
Statistical goods number: 82074010
