Guhring UNF Gun Taps HSS-E Blue band Sirius coated 7/8

Product Code: 4643 22,225

$596.65$542.41 Ex. GST

Product Code: 4643 22,225 SKU 4643 22,225 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Gun Taps HSS-E Blue band Sirius coated 7/8

Guhring UNF Gun Taps HSS-E Blue band Sirius coated 7/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

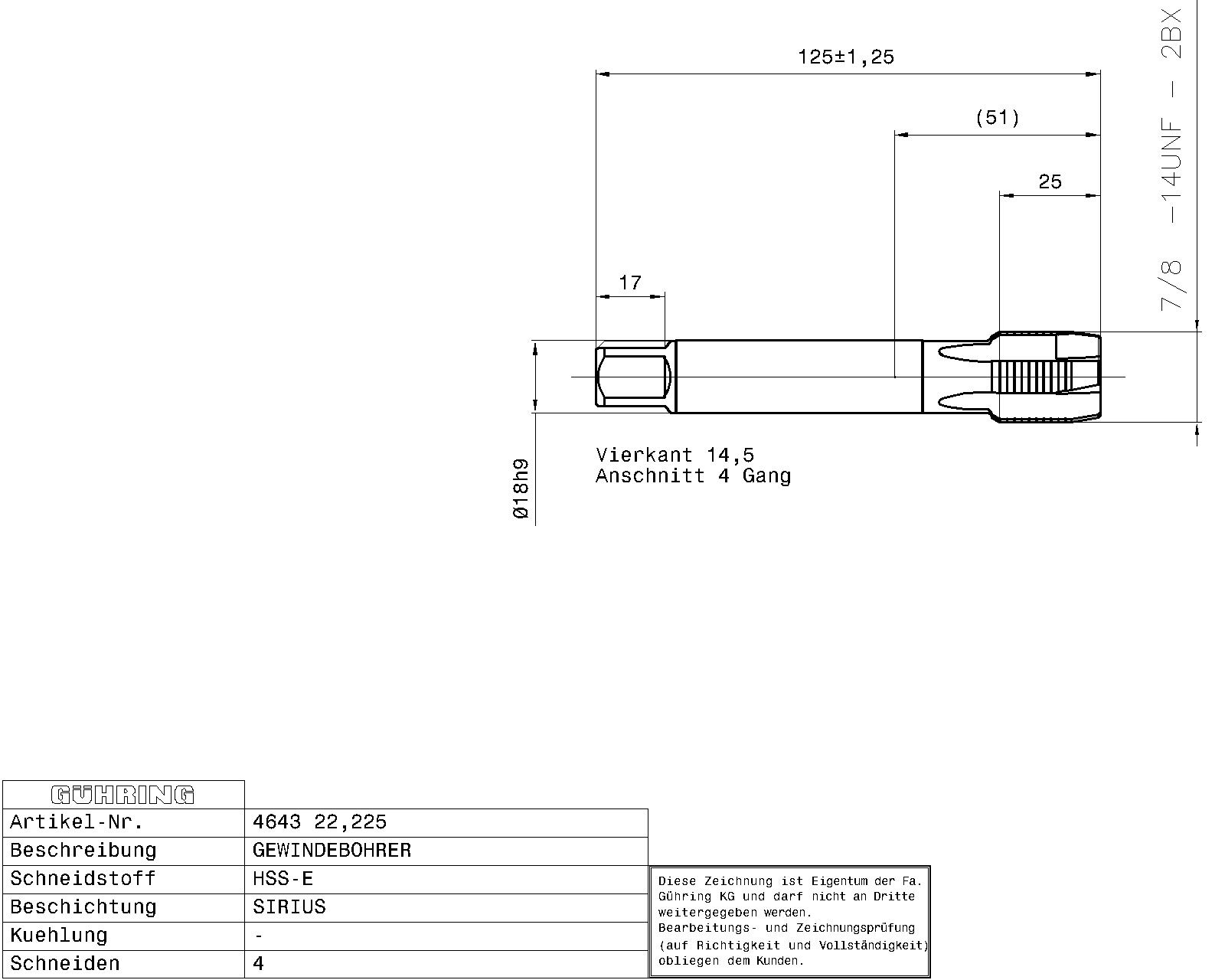

Machine taps for UNF-threads 7/8 – 14 / 2BX / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.2530 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: Sirius Discount group: 103 Type: 4643 Cutting direction: right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: UNF Tolerance class thread: 2BX Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 22.225 Weight: 0.253 No of cutting edges: 4 Total length: 125.000 Thread length: 25.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 14.500 Neck Ø: 17.800 Core hole Ø: 20.40 Shank Ø: 18.000 Nominal dimension thread: 7/8 – 14 External Ø: 22.320 Pitch thread/inch: 14.000 Reach length: 51.000 Statistical goods number: 82074010

Brand

Guhring
